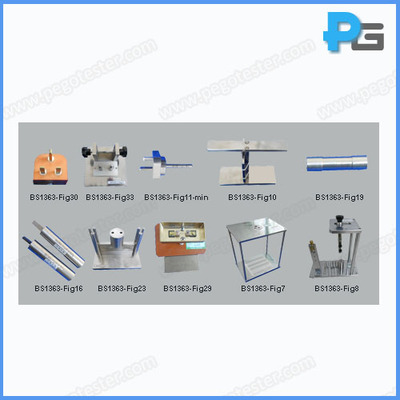

BS1363 Plug and Socket-Outlet Gauges
| Standard Number | Description | Figure number | QTY |
| BS1363-1 | Test pin | BS1363-1:1995 figure 1 | 1 |
| BS1363-1 | Apparatus for mechanical strength test on resilient covers | BS1363-1:1995 figure 2a | 1 |
| BS1363-1 | Hardwood block for Figure 2a | BS1363-1:1995 figure 2b | 1 |
| BS1363-1 | Gauge for plug pins | BS1363-1:1995 figure 5 | 1 |
| BS1363-1 | Apparatus for testing plug cover fixing screws | BS1363-1:1995 figure 6 | 1 |
| BS1363-1 | Mounting plate | BS1363-1:1995 figure 7 | 1 |

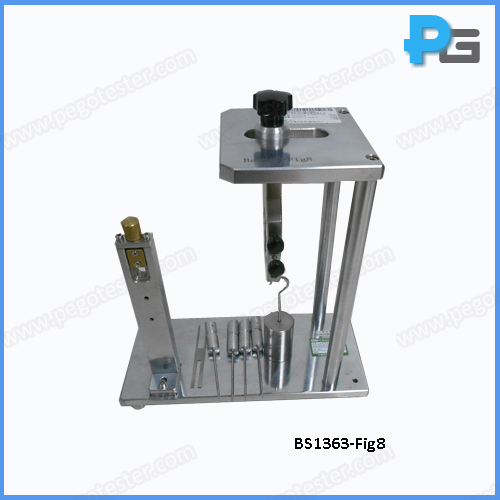

| BS1363-1 | Plug pin deflection test apparatus for resilient adaptors | BS1363-1:1995 figure 8 | 1 |
| BS1363-1 | Apparatus for abrasion test on insulating sleeves of plug pins | BS1363-1:1995 figure 9 | 1 |

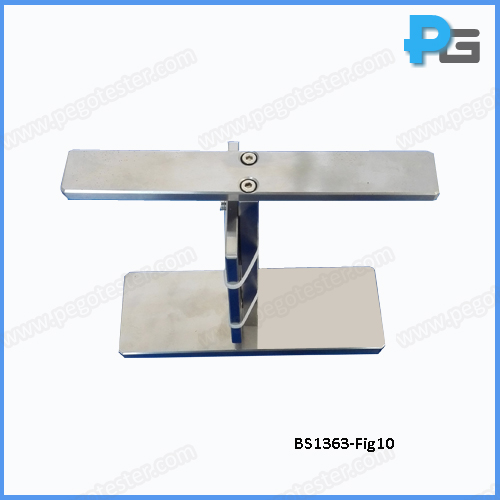

| BS1363-1 | Apparatus for pressure test at high temperatures | BS1363-1:1995 figure 10 | 1 |

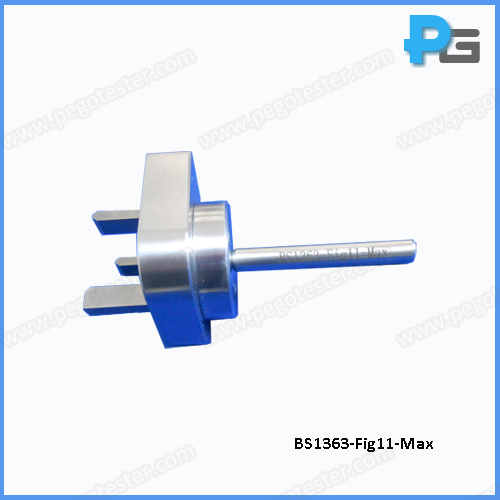

| BS1363-2 | Go gauge for socket-outlet | BS1363-2:1995 figure 11 | 2 |
| BS1363-2 | Contact test gauge | BS1363-2:1995 figure 12 | 1 |
| BS1363-2 | Test apparatus and circuit for use with contact and non-contact test
gauges | BS1363-2:1995 figure 13 | 1 |
| BS1363-2 | Non-contact test gauge | BS1363-2:1995 figure 14 | 1 |
| BS1363-2 | Turning moment gauge | BS1363-2:1995 figure 15 | 1 |
| BS1363-2 | Withdrawal pull gauges for effectiveness of contact | BS1363-2:1995 figure 16 | 2 |
| BS1363-2 | Test apparatus for temperature rise test | BS1363-2:1995 figure 17a | 1 |
| BS1363-2 | Dummy front plate for temperature-rise test | BS1363-2:1995 figure 17b | 1 |
| BS1363-2 | Apparatus for flexing test | BS1363-2:1995 figure 18 | 1 |
| BS1363-2 | Solid link for test on fuse clips | BS1363-2:1995 figure 19 | 1 |
| BS1363-2 | Tumbling barrel | BS1363-2:1995 figure 20 | 1 |
| BS1363-2 | Pendulum impact test | BS1363-2:1995 figure 21 | 1 |
| BS1363-2 | Apparatus for pressure test | BS1363-2:1995 figure 23 | 1 |
| BS1363-2 | Apparatus for ball pressure test | BS1363-2:1995 figure 24 | 1 |
| BS1363-2 | Calibration jig for calibrate link | BS1363-2:1995 figure 29 | 1 |
| BS1363-2 | Test plug for temperature rising | BS1363-2:1995 figure 30 | 1 |
| BS1363-2 | Apparatus for tests on adaptor pins | BS1363-2:1995 figure 32 | 1 |
※ Please send figure number when make inquiry
