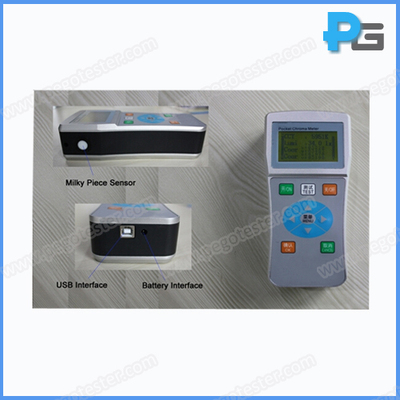

Portable colorimeter (HPC-2)
1. Introduction
HPC-2 Colorimeter is a portalbe equipment which can test wavelength, color temperature, chromaticity coordinates, CCT, color rending index (CRI), SDCM and etc. Portable colorimeter is widely applied in productions of LED, HID and CFL, and greatly improves the test efficiency. The data can be output by connecting with computer.
2. Parameter
● Wavelength: 380nm-780nm
● Accuracy: ±0.5nm
● Repeatability: ±0.2nm
● chromaticity coordinates(x,y,u,v): ±0.0025
● Resolution: 0.0001
● Correlated color temperature: 1500-25000K
● Accuracy:±3%
● Resolution: 1K
● SDCM accuracy: ±0.2 (underilluminant A)
● Interface: USB (with software)
