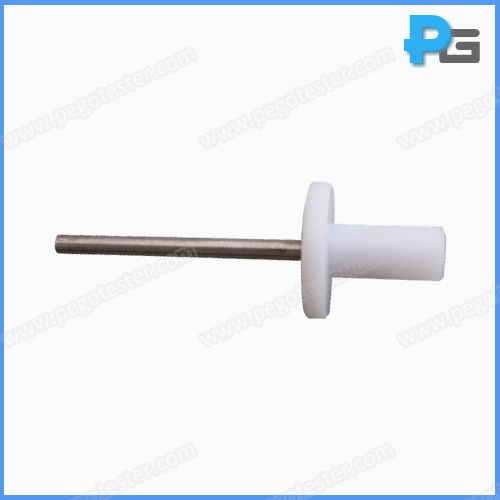

Test Probe 12 ( Cylindrical Long Taper Test Pin )
1. Introduction:

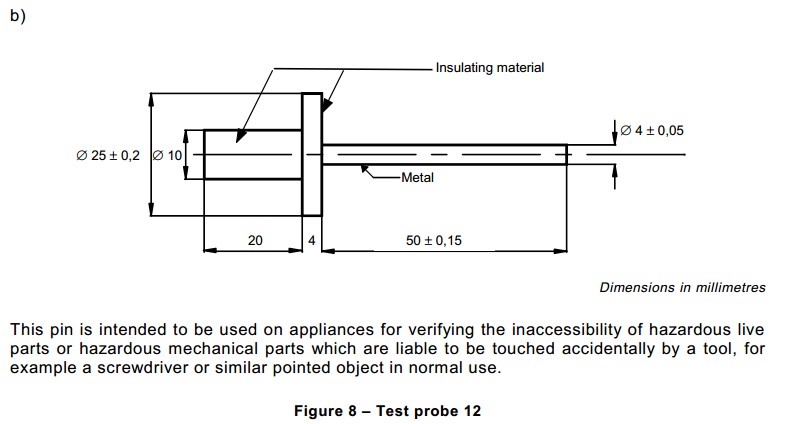

Test probe 12 (cylindrical long taper test pin : Φ4-length 50 ) is designed according to IEC61032 figure 8. This pin is intended to be used on appliances for verifying the inaccessibility of hazardous live parts or hazardous mechanical parts which are liable to be touched accidentally by a tool, for example a screwdriver or similar pointed object in normal use.
2. Specification:
diameter of test probe | 4mm |
length of test probe | 25mm |
diameter of baffle | 25mm |
thickness of baffle | 4mm |
Material | Insulating material (handle), metal (test probe) |
