Digital Izod Impact Strength Tester
Detail
Description: izod impact strength tester is designed according to ISO180-2000, GB/T1843-2008, JB/T8761-1998 and ASTMD256-2010 Model: PG-IZD

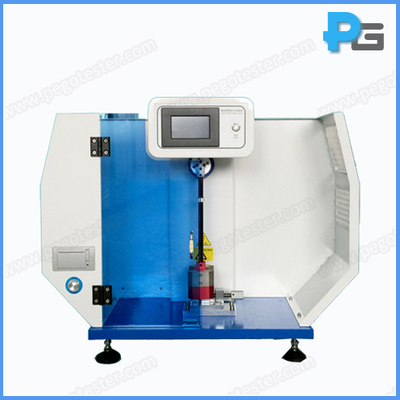

Digital Izod Impact Strength Tester

1. Introduction

The izod impact strength tester is mainly used for the determination of impact toughness of non-metallic materials such as plastic, reinforced nylon, glass reinforced plastic, ceramic, cast stone and electrical insulating materials. It is an ideal test equipment for chemical industry, scientific research institution, universities and colleges, and quality inspection departments. Meet the requirements of ISO180-2000, GB/T1843-2008, JB/T8761-1998 and ASTMD256-2010.The izod impact strength tester is a simple structure, convenient operation and high test accuracy equipment, it adopts high-precision encoder technology, with features of high precision, good stability and large measuring range. The digital measurement shows the impact strength and average value, energy loss is automatically corrected, and test reports can be printed direclty.


2. Specifcation:

Display

LCD touch screen (built-in micro-printer)

Units

J/m,KJ/m2, kg-cm/cm,ft-ib/in

Angle accuracy

0.010

Impact energy accuracy

0.01J

Impact speed

3.5m/s

Distance between center of hammer to pendulum striking edge

335mm

Distance between pendulum striking edge to vice jaw upper plane

22mm

Pre-elevation

15

Edge corner radius

R=0.8±0.2mm

Impact energy

2.75J,5.5J,11J, 22J

Working power

AC220V±10%, 50HZ

Weight

85kg


3. Configuration List:

Type

Name

number

unit

Mainframe

Impact test equipment

1

set

Accessories

toolbox

1

set

1J impact pendulum hammer

1

set

2.75J impact weights

1

pair

5.5J impact weights

1

pair

11J impact weights

1

pair

22J impact weights

1

pair

Sample clamp

1

suit

socket head wrench

1

suit

Printer (buit-in the equipemnt)

1

set
