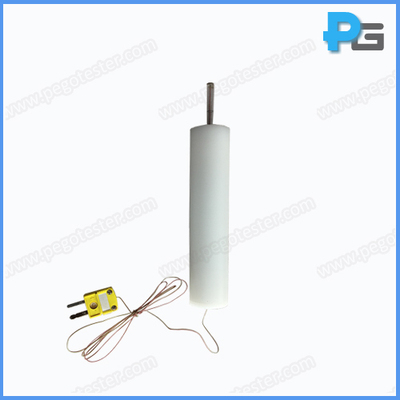

Test Probe for Measuring Surface Temperature
Detail
Description: The probe designed according to the requirements of the IEC60335 standard Model: PG-TP335

Test Probe for Measuring Surface Temperature

1. Introduction

The probe for measuring surface temperature is designed according to the requirement of   IEC60335-2-11 figure 101 and IEC6335-2-6. It’s mainly used to test the temperature rise of the front and side of the cooker, oven and tumble dryers, 4N force is applied according to the standard.


2. Parameters

Copper Sheet

Diameter 5mm, thickness 0.5mm

Thermocouple

0.3mm diameter, American OMEGA K type

Insulated Pipe

Polycarbonate, inner diameter 3 mm, outer diameter 5 mm

Hand

With 4N force


3.   Usage

1) . The test shall be carried out after the test corner test is completed.

2) . The equipment under test should be powered for 60mins or it reaches a steady state before test.

3) . The top of the probe was pressed against the surface of the device under test, and a 4 N force should be applied until the temperature was stable.
