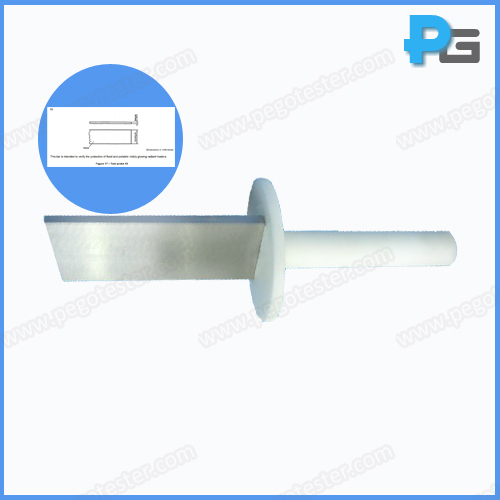

Test probe 43 ( Test Bar )
1. Introduction
Test Probe 43 ( Test Bar ) designed according to IEC61032 figure 17. This bar is intended to verify the protection of fixed and portable visibly glowing radiant heaters.
2.Parameter
Diameter of probe | 30mm |
Length of probe | 80mm |
Diameter of handle | 50mm |
Length of handle | 80mm |
Material | insulating material (handle), probe (metal) |
