30mm Circular Plane
1. Introduction

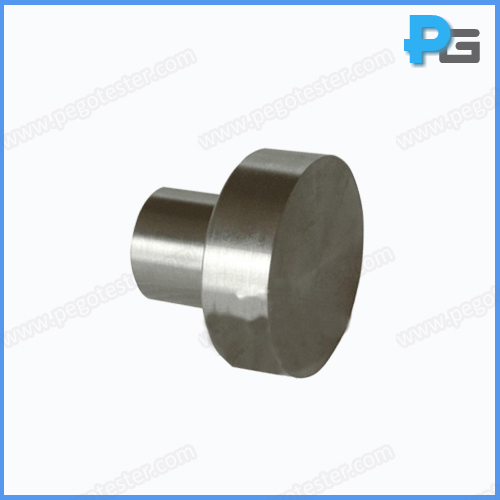

The 30mm circular plane is designed to meet the test requirements of IEC60950 clause 4.2.4 and IEC60601-1 clause 15.3.2. It’s made of stainless steel. The circular plane has a 30mm diameter surface and with M6 connector, so that to work with a foce gauge to apply a 250N±10N steady force to external enclosure of equipment having a mass of not more than 18KG.
2. Specification
Diameter of the plane surface | φ30mm |
Connector | M6 thread |
Material | Stainless steel |
Force applied | 250N±10N (by working with a force gauge) |
