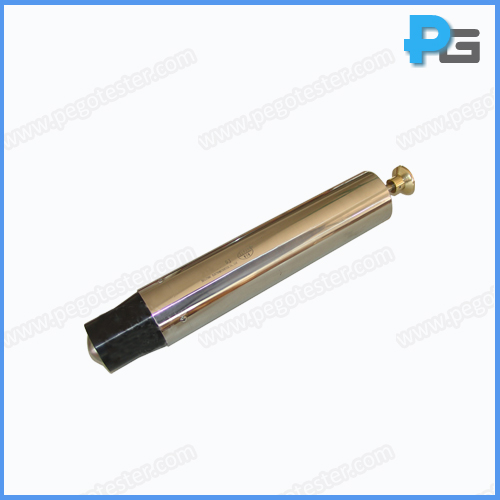

IK08 5J Spring impact hammer
1. Introduction:
IK08 5J spring impact hammer is not a standard equipment, but it is easy to operate by manual impact, the impact energy is 5J, and it is made by brass.
IK ratings are defined as IKXX, XX is a number from 00 to 10 which indicates the degrees of protection provided by enclosures against external mechanical impacts. The different IK rating relate to the ability of an enclosure to resist impact energy levels measured in joules (J). It is designed according to IEC60068-2-75 Ehb, and can applicate to IEC60598, IEC60068-2-75 and etc.
Degrees of protection against external mechanical impacts
IK01 | IK02 | IK03 | IK04 | IK05 | IK06 | IK07 | IK08 | IK09 | IK10 |
0.14J | 0.2J | 0.35J | 0.5J | 0.7J | 1J | 2J | 5J | 10J | 20J |
2. Parameters:
Model | IK01-06 | IK07 | IK08 |
Impact Energy | 0.14J, 0.20J, 0.35J, 0.5J, 0.7J or 1.0J | 2.00±0.05J | 5.00±0.25J |
Tolerance | ±10% | ±5% | ±5% |
Equivalent mass | 250g±5g | 500g±5g | 1.7kg±2% |
Trigger force | <10N | <10N | <10N |
Total mass | 1250g±10g | 1500g±10g |
|
