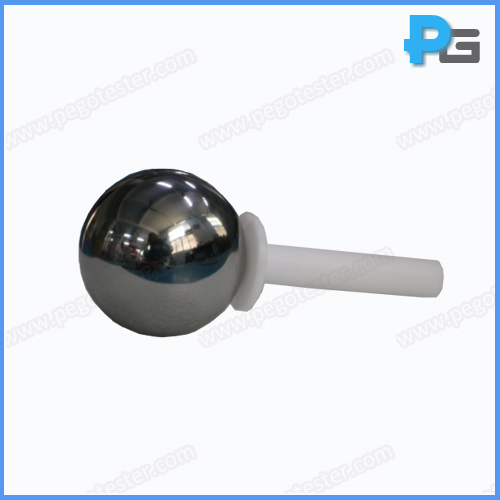

φ75mm Test Sphere with Handle
1. Introduction
φ75mm test sphere is designed to meet the test requirements of IEC60335-2-24 clause 21.102 to verify the lamps in household appliance protect against mechanical shocks. The sphere without appreciable force in a attempt to touch the lamp with the lamp cover in place, the sphere shall not touch the lamp.
2. Specification
Diameter of the sphere | φ75mm |
Length of handle | 100mm |
Material | insulating material (handle and baffle), metal (test sphere) |
