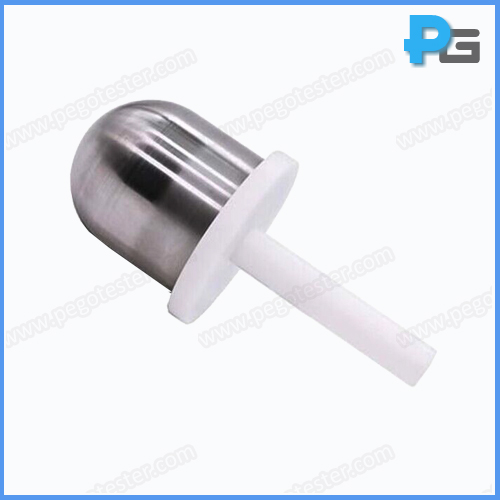

Φ75mm Cylindrical Rod
1. Introduction
Φ75mm Cylindrical rod is designed to meet the requirement of IEC 60335-2-30 table 101. The cylindrical rod has a diameter of 75mm and a hemispherical end for testing the temperature rises of surface of heaters.
2. Specification
Diameter of the rod | Φ75mm (hemispherical end) |
Length of the rod | 50mm |
Length of handle | 100mm |
Material | Stainless steel (cylindrical rod) Insulating material (handle) |
