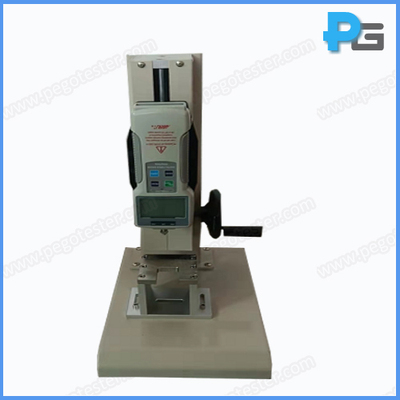

Bending Moment Test Device


Detail
Description The test device can meet the test requirement of IEC60968-2015-02 clause 6.2 and IEC62560 clause 6.2 Model PG-BDM

Bending Moment Test Device

1. Introduction

The bending moment test device is applied to test the bending moment of the lamp at the lampholders, the value of bending moment shall not exceed the values given in below table. The test device can meet the test requirement of IEC60968-2015-02 clause 6.2 and IEC62560 clause 6.2.

Caps

Bending moment (Nm)

Mass (kg)

B15d

1

/

B22d

2

1

E11

0.5

/

E12

0.5

/

E14

1

/

E17

1

/

E26

2

/

E27

2

1

E39

1

/

E40

1

/

GU10

0.1

/

GZ10

0.1

/

GX53

0.3

/


2. Parameter

Force gauge

Test range: 0-10Nm

Resolution: 0.1Nm

Accuracy: ±0.3% F.S.

Lifting structure

Lifting range: 0-100mm

Structure: linear guideway+manual wheeler

Bending moment

L*N

L: distance between the pivot line and the top of the lamp, measured by steel ruler

N: force value, measured by digital force gauge

Accessories

Digital force gauge, fixed blocks, steel ruler


3. Figure
