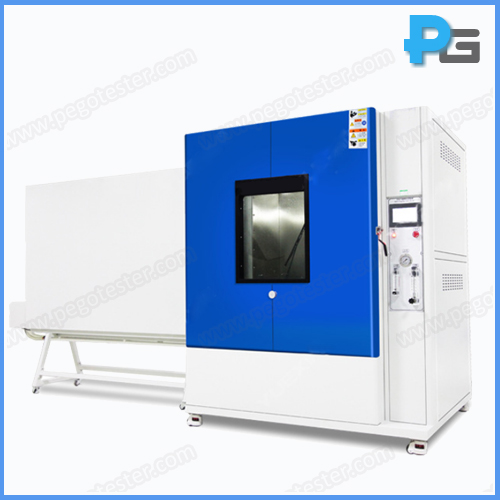

IPX5 and IPX6 Automatic Water Jet Nozzles Test Chamber


Detail
Description The IPX5 and IPX6 tests are made by spraying the enclosure from all practicable directions with a stream of water from standard test nozzles Model IPX56BS

IPX5 and IPX6 Automatic Water Jet Nozzles Test Chamber

1. Introduction

The IPX5 and IPX6 tests are made by spraying the enclosure from all practicable directions with a stream of water from standard test nozzles, the test nozzles (hose nozzles) with Φ6.3mm and Φ12.5mm diameter are strictly designed according to IEC60529 figure 6.

IPX5 and IPX6 water ingress protection testing equipment is consisted by test tunnel and test chamber. Test nozzles are placed at the test tunnel with a distance of 2.8m from the center of the turntable, the turntable is inside the test chamber, the test nozzles can swing up and down to spray the enclosure from all practicable directions automatically. Built-in water tank and the water can be recycled, the test is controlled by PLC and touch screen, the delivery rate is 12.5L/min±5% for IPX3 test and 100L/min±5% for IPX4 test, the water pressure should be adjusted to achieve the specified delivery rates, test duration per square meter of enclosure surface area likely to be sprayed for 1 min, minimum test duration is 3min.


2. Features:

● For IPX5 and IPX6 waterproof testing.

● Mainframe and turntable are made by SUS304# stainless steel to ensure rustless for long time.

● The fixture is customizable for fixing samples on the turntable

● Built-in water tank, auto to control the water level with the help of Water floating ball valve, and alarm at high or low level to protect from the damage caused by low water level.

● The water can be recycled

● Adopts speed motor, the speed in the standard range, and can control the positive and negative direction (for live test, to prevent wire wrapping).

● Jet nozzles: strictly designed according to IEC60529.

● Built-in outlet in the chamber (AC220V, 10A) for live test. The power on and power off time can be controlled: off (0~999min)-on (0~999min)-off (o-999min).

● Test time can be set at the touch screen. Time setting range: 0~999min (adjustable), auto shut down when finish the test.

● Adopts 7 inch touch screen and Panasonic PLC.

● Easy to operation, IPX5 and IPX6 testing can easy conversion.


3. Specification

Model

IPX56BS-500L

IPX56BS-1000L

IPX56BS-1400L

Inner size (mm)

800*800*800

1000*1000*1000

1180*1180*1000

Outer size(mm)

3900*1000*1600

4000*1450*1800

4000*1450*1850

Diameter of turntable

Φ600mm

Φ600mm

Φ600mm

Delivery rate (IPX5)

12.5L/min±0.625

Delivery rate (IPX6)

100L/min±5

Turntable bearing

50KG (max)

Inner diameter of nozzles

Φ6.3mm (IPX5), Φ12.5mm (IPX6)

Test distance

2.8m

Working power

380V/50Hz

Power supply for specimen

220V

Control system

PLC+7 inch touch screen

Protection

Electric leakage, hydropenia, short circuit
