IPX5/6 Strong Jet Water Simplified Test Device
1. Introduction:
IPX5/6 strong jet water simplified test device is designed according to IEC60529 clause 14.2.5 and 14.2.6. Waterproof test simulates the condition of water jets and powerful water jets, which is mainly applied to electronic products, luminaire, electric components, motor and house-holding appliance. The waterproof test can help to judge the products’ performance, and provide the basis for design, improve and inspect.

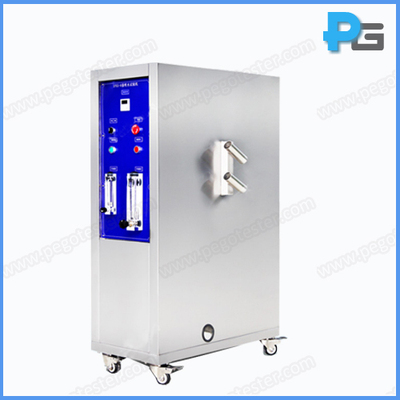

The simplified test device is consisted by control units, Φ6.3mm and Φ12.5mm jet hose nozzles, the equipment is equipped with 4 casters so that it can be moved at will.
2. Features:
● For IPX5 and IPX6 waterproof testing.
● Mainframe is made by SUS304# stainless steel to ensure rustless for long time.
● Jet nozzles: strictly designed according to IEC60529.
● The water flow is adjusted by the flow meter and manually adjusted.
● The test time is controlled by a time relay.Time setting range: 0~999min (adjustable), after the test is completed, it will automatically stop.
● Control system: time relay + change-over switch, all electrical components adopt world-famous brands such as LS, Omron and etc..The electrical board layout is reasonable, the wiring is firm, and the marking is clear.
● Easy to operation, IPX5 and IPX6 testing can easy conversion.
3. Specification:
Control system | Time replay+IPX5/6 change-over switch |
Outer size (mm) | 300*800*1300 (L*W*H) |
Aperture diameter of IPX5 nozzle | 6.3mm |
Aperture diameter of IPX6 nozzle | 12.5mm |
Delivery rate for IPX5 (L/min) | 12.5±0.625 |
Delivery rate for IPX6 (L/min) | 100±5 |
Water pressure (Mpa) | As per the standard requirement |
Flowmeter control | Manual control |
Distance from specimen | 2.5~3m (manual control) |
Nozzle fixed way | Hand-held |
Material | SUS304 stainless steel |
Protection | Electric leakage, hydropenia, short circuit |
Working power | 380V/50Hz, 3KW |
Power for EUT | 220V/50Hz |
Working condition | 5~35℃, ≤85%, 86kPa～106kPa |
Water source | 1. The user is required to configure a water source for the equipment at the installation site, with a water pressure not less than 0.2Mpa, and install a 4/8 inch faucet. 2. The faucet is not more than 2 meters away from the equipment |
