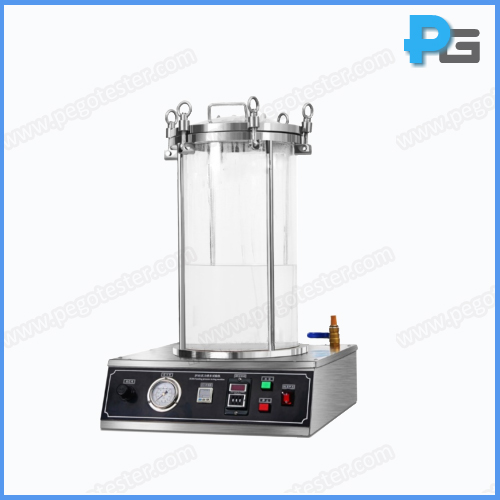

IPX8 High Pressure Transparent Water Tank
1. Introduction
IPX8 High Pressure Transparent Water Tank can meet the requirement of IEC60529 for IPX8 testing and IEC60598. The pressure in the jar can be precisely automatically controlled in purpose of checking the tightness and the leak points (by observe the bubbling during the test).The equipment is mainly consisted by transparent Sealed jar and control unit.
2. Features
● For IPX8 test.
● Working principle: The sample is placed into the water, close the lid and setup the test pressure and pressure holding time, then start the equipment. When the sample is in water, increase the air pressure on the water surface to the set value and then maintain the pressure. If there is a leak in the sample, the water will be pressed into the sample, and the air in the sample will be discharged, and the leakage point of the sample can be observed through bubbles. After the test is completed, the pressure can be automatically stopped, and the air inside the jar can be automatically drained. The operator can open the lid and take out the test sample.
● The jar is made of acrylic, it is full transparent for observe purpose.
● Adopts special silicone sealing ring which has good elasticity and not easy to damage.
● The jar has passed the pressure test by applying 2 times the working pressure, and equip with branded safety valve to protection the user.
● Control unit: controlled by digital pressure gauge and time relay, the pressure in the jar and pressure holding time can be setup. One-key start to complete the test automatically.
● Pressure control: pressure sensor made by Panasonic, can auto control the test pressure. Control accuracy: ±0002Mpa, display accuracy: 0.001Mpa.
3. Parameter
Outer size | 500mm*550mm*600mm (L*W*H) |
Inner size | Φ270mm*300mm |
Wall thickness | 15mm |
Jar Material | acrylic |
Flange thickness | 20mm |
Flange material | Stainless steel |
Weight | 40KG |
Pressure control mode | auto |
Pressure error | ±0.002 Mpa |
Sensor display accuracy | 0.001Mpa |
Test water depth | 0-30m |
Pressure adjustment range | 0.01MPa-0.3MPa |
Safety valve exhaust pressure | 0.35MPa |
Pressure hold time | 0-999min |
Protection device | Leakage switch protection, mechanical safety valve protection |
Working Power | AC220V/50Hz (single phase), 100W |
Working condition | Temperature: 5℃~35℃ Relative humidity: ≤85% Pressure: 86kPa~106kPa |
Test water | Tap water or pure water |
Air source | The air compressor is provided by the user, and the recommended output air pressure: 0.6Mpa—0.8Mpa. Install the female quick connector |
