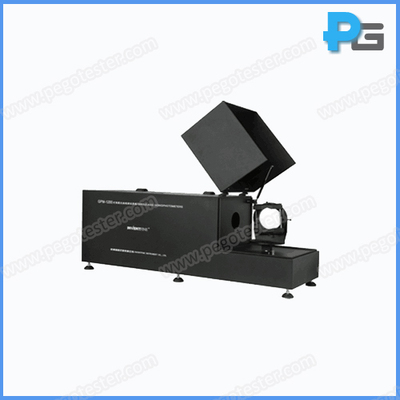

Compact Goniophotometer for LED Lamp
Detail
Description: Luminous intensity distribution test system is applied to test the total luminous flux, isocandela diagram, isolux diagram, IES file and other photometry data. Model: PG-1200A

Luminous Intensity Distribution Test System for LED Lamp

1. Introduction

PG-1200A luminous intensity distribution test system is applied to test the total luminous flux, isocandela diagram, isolux diagram, IES file and other photometry data. Equip with dark chamber and light diaphragm, the dark room is needless. The test system is applied to test LED reflection lamp fixture, meet the requirements of LM-79, IEC and CIE121.


2. Parameter:

● Luminous intensity test range: 0.1-30000cd

● Accuracy of photometry: class 1

● Beam spread angle: θ(50%)θ(25%)θ(75%)

● Angle range: -90~+90 degrees

● Accuracy of angle: ±0.2 degrees

● Angle interval: 0.5/1/1.5 degrees

● Detector: V(λ)correction

● RS-232 port, work under the system of Windows 2000/xp

● Max lamp size: 18cm

● Test distance: 1000mm/316mm

● Can output IES file
