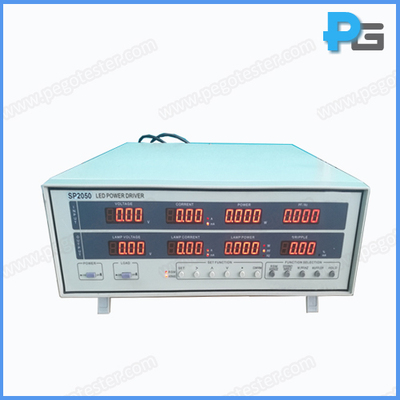

LED Power Driver Tester
1. Introduction
LED power driver tester meets the requirement of IEC62384:2006, 8 windows to display input and output characteristics, includes voltage, current, power, power factor, frequency, phase angle, total harmonic, harmonic component@ 0~50. Fast test speed, data can be gotten at 1s.
2. Parameters
● Input (AC): measuring the input voltage, current, power, power factor, frequency, total harmonic and harmonic components @ 0~50 times and crest factor.
1)Frequency range: 45Hz~5KHz
2)Voltage range: 1V~300V
3)Current range: 1mA~6A
4)Voltage and current test accuracy: ±(0.1% RD+0.1% FS+1 digit)
5)Power range: 0.1W~1800W
6)Power test accuracy: ±(0.1% RD+0.1% FS+1 digit)
7)Power factor range: 0.000~+1.000
8)Power factor test accuracy: ±(0.1% RD+0.1% FS+1 digit)
9)Harmonic order: 0~50
● Output (DC): Measuring lamp voltage (average voltage, RMS voltage), lamp current (average current, RMS), lamp power, ripple current
1)Voltage range: 1V~300V
2)Current range: 1mA~6A
3)Voltage and current test accuracy: ±(0.1% RD+0.1% FS+1 digit)
4)Power range: 0.1W~1800W
5)Power test accuracy: ±(0.1% RD+0.1% FS+1 digit)
6)Ripple current range: 1mA~6A
7)Ripple current accuracy: ±(0.1% RD+0.1% FS+1 digit)
