IP2X Test Finger Probe: The Magic Tool Ensuring Safety of Electrical Equipment

1. Introduction

The IP2X test finger probe complies with multiple standards and requirements, including GB4706.1, GB2099.1, IEC61032, etc., specially for IEC60529 standard. It fully meets the test requirements of the first number “2” in the IP protection level test. It’s a test tool for the protection against electric shock of household and similar electrical appliances.

2. Types of Jointed Finger Probes

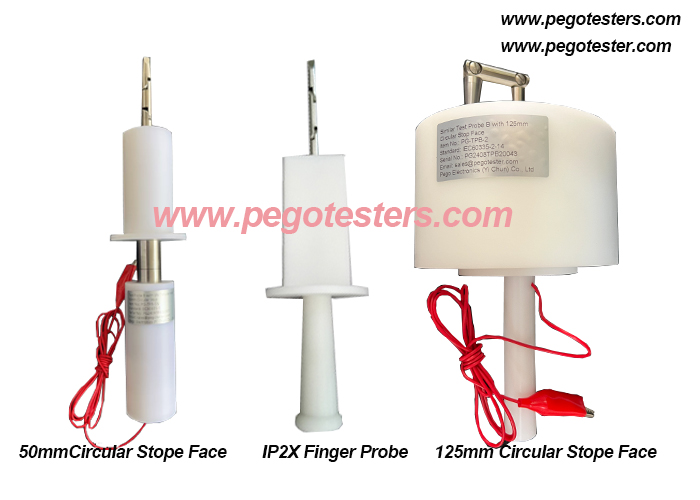

When it comes to jointed finger probes, different standards impose diverse requirements regarding the size and shape of the probe's stop face. To effectively meet these standard requirements, Peg has meticulously designed several distinct stop faces in accordance with the respective standard specifications. The specific models are as follows:

Firstly, there is the PG-TPB. This is an IP2X jointed finger probe featuring a 50mm stop face. Significantly, it complies with the requirements set by both the IEC61032 and IEC60529 standards.

Secondly, the PG-TPB-1 comes into play. It is a similar test probe B equipped with a 50mm circular stop face. Notably, it satisfies the stipulations of clause 20.2 in IEC60335 - 1.

Last but not least, the PG-TPB-2 is another important model. It is a similar test probe B with a 125mm circular stop face, which meets the requirements of clause 20.2 in IEC60335 - 2 - 14.

3. Importance of the IP2X Test Bent Finger

The IP2X test finger probe is irreplaceable in ensuring the safety and reliability of electrical equipment. From the perspective of product design, it provides a clear design criterion for electrical equipment manufacturers, prompting them to fully consider the protection measures against finger contact with dangerous parts at the product design stage, thereby improving the overall safety of the product. In terms of quality control, the IP2X test bent finger is a key tool in the quality inspection and certification process of electrical equipment. Only products that pass the strict IP2X protection class test can obtain relevant certifications and enter the market for sale. This not only protects the lives and property of consumers but also maintains the healthy order of the market and promotes the sound development of the electrical industry.

4. Conclusion

As a core tool for testing the protection class of electrical equipment, the IP2X test probe plays a vital role in ensuring the safe operation of electrical equipment and the personal safety of users. With the continuous development of electrical technology and the increasing awareness of safety among people, the IP2X test bent finger will continue to play an important role in all aspects of the design, production, testing, and certification of electrical equipment, providing a solid guarantee for building a safe and reliable electrical use environment. Its existence is not only a concrete manifestation of the safety standards for electrical equipment but also an important force driving the continuous progress and development of the electrical industry.
