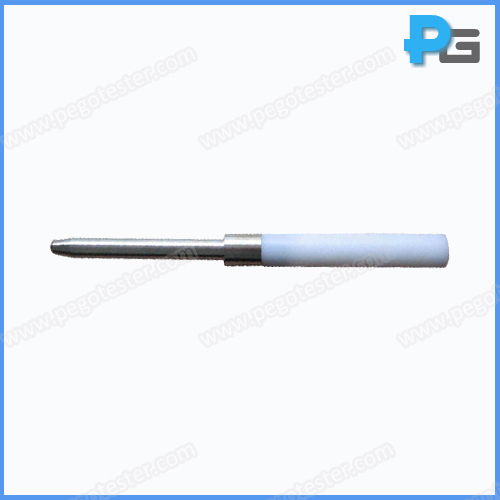

UL Accessibility Test Probe for Uninsulated Live Part
1. Introduction
UL accessibility test probe is designed according to UL507 figure 9.1 (PA135A) and UL1278 figure 8.1 (PA130A). The handle is made by nylon and tip is made by stainless steel. The probe is to verify the accessibility to uninsulated live parts and film coated wire provided by openings.
2. Specification
Rigid finger length | 101.6mm (4 inch) |
Rigid finger diameter | Φ12.7mm (1/2 inch) |
Head length | 14.3mm (9/16 inch) |
Head radius | R4.8mm (3/16 inch) |
Tail diameter | 191.mm (3/4 inch) |
