UL Test Probe for Hazardous Moving Parts
1. Introduction

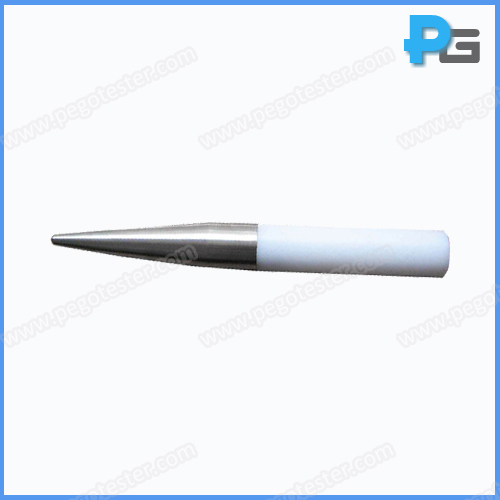

Hazardous moving part probe is conforms to the standards of UL507 figure 8.1 (PA160B), UL1278 figure 9.1 (PA160). It is applied to test the accessibility to hazardous moving parts such as access to fan blades through a fan finger guard. The handle is made of nylon, the finger is made by stainless steel.

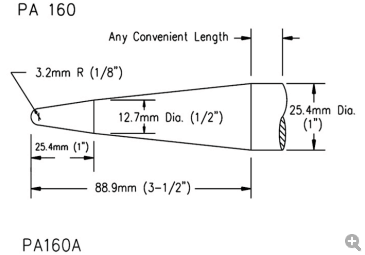

2. Specification
Rigid finger length | 88.9mm (3.5 inch) |
Head length | 25.4mm (1 inch) |
Head radius | R3.175mm (1/8 inch) |
Head former diameter | 12.7mm (1/2 inch) |
Tail diameter | 25.4mm (1 inch) |
Standard | UL507, UL1278 |
