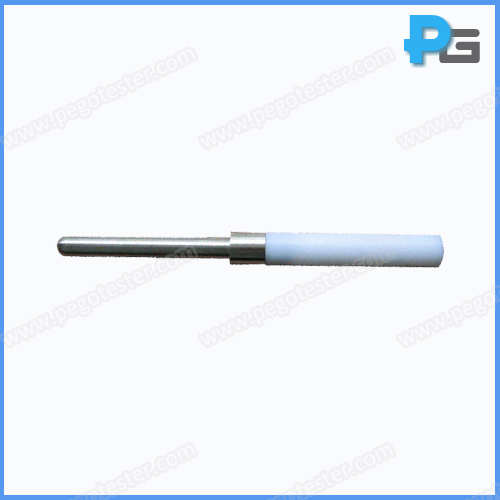

S2140A UL Accessibility Test Probe for Fan Impellers
1.Introduction
S2140A UL Rigid Finger test probe is designed according to UL1278, UL1026 and UL507 (S2140A). The probe is to verify the accessibility to impellers and other moving parts that presents a risk of injury to a person.

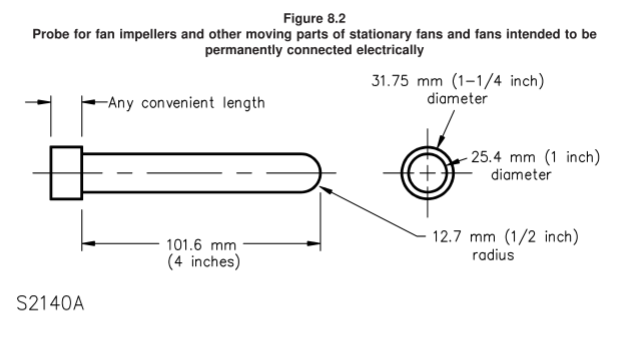

2.Parameter
● Diameter of probe: 25.4mm (1inch)
● Length of probe: 101.6mm (4 inch)
● Radius of head: R12.7mm (1/2inch)
● Diameter of tail: 31.75mm (1-1/4inch)
