Oven & Cooktop Test Blocks
1. Introduction

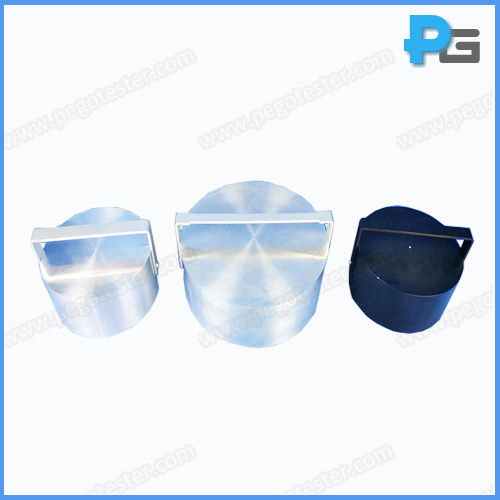

The oven & cooktop test block is designed according to CAN/CSA-C358-03 standard, it is made of No. 6061 aluminum and each one will equip with a handle.
2. Parameter
Cooktop test blocks |
| Oven test block* | Small | Large |
Diameter | 158±1.3 | 158±1.3 | 228.6±1.3 |
Appropriate height | 71 | 71 | 76 |
Weight | 3.85±0.05 | 3.85±0.05 | 8.62±0.05 |
Surface roughness (um) rms | 0.8 | 0.8 | 0.8 |
*The over test block shall be anodized with a matte black hard coating 0.025mm mininum thickness or with a finish having the equivalent absorptivity. Adjust the height to match the weight Weight includes the handle support screws |
Notes: (1) The material of the test blocks shall be aluminum, alloy no.6061, 96%+ pure, with specific heat capacity of 963 J/kg at 0-20 (2) The bottom of all test blocks shall be flat to within 0.051mm |
