In-Depth Analysis of IEC60884-1 High Temperature Pressure Test Apparatus

In the modern industrial landscape, the assessment of material performance under specific conditions is of utmost importance. Among various testing equipment, the IEC60884-1 high temperature pressure test device plays a crucial role in evaluating the high - temperature properties of materials used in plug, cable, and optical cable insulation sheaths.

1. Overview of High Temperature Pressure Test Apparatus

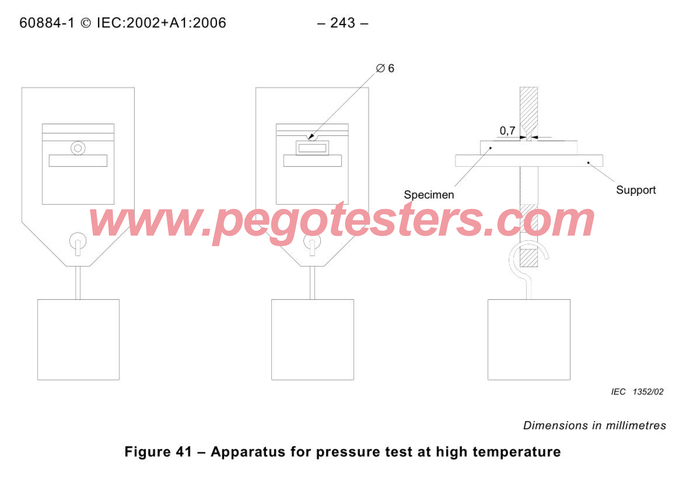

The IEC60884-1 Figure 41 high temperature pressure test apparatus is primarily designed for conducting high - temperature performance tests on materials of plugs, cables, and optical cable insulation sheaths in harsh environments. Its working principle involves applying a specific gravitational force to the sample within a high - temperature setting. After the test, the depth of the indentation is measured to determine the high - temperature resistance of the sample. This device must be used in conjunction with a heating cabinet and fully complies with the requirements of Clause 30.1 Figure 41 in IEC60884 - 1 and Clause 8 Figures 1/2/3 in IEC60811 - 3 - 1. This means that its design and operation adhere to internationally recognized standards, ensuring the accuracy and reliability of test results and providing a solid basis for the quality assessment of related products.

2. Application Scenarios

2.1 Plug Insulation Sheaths

In high temperature environments, plug insulation sheaths need to possess excellent pressure - resistant properties to guarantee safe operation. This testing device can simulate real - world high - temperature scenarios and evaluate the pressure - resistance of plug insulation sheaths under such conditions. For example, plugs used in high - temperature industrial settings or regions with hot climates must pass such tests. By doing so, potential safety hazards caused by insufficient pressure - resistance during long - term exposure to high temperatures can be avoided.

2.2 Cables and Optical Cables

For cables and optical cables with a diameter greater than 0.4mm, the high - temperature performance of their insulation and sheaths is critical. The high - temperature pressure test device is suitable for conducting targeted high - temperature performance tests on them. In fields such as power transmission and communication, cables and optical cables often encounter high - temperature environments. If the high - temperature performance of the insulation and sheaths is substandard, issues like signal transmission failures and power leakage may occur. Through testing with this device, products with excellent performance can be selected, ensuring the stable operation of relevant systems.

3. Structural Composition

The IEC60884-1 high temperature pressure test machine typically consists of several key components. It includes a hardness test stand, which serves as the basic framework for the entire testing setup. There is a round blade with a diameter of 6mm and an edge thickness of 0.7mm, as well as a rectangular blade with a 0.7mm - wide edge. These blades are used to apply pressure to the samples. Additionally, a 2.5N load weight is included, which provides the necessary gravitational force during the test. The machine is equipped with two stations, enabling efficient testing procedures. This dual - station design allows for parallel testing in some cases, saving time and improving testing efficiency.

4. Testing Methodology

4.1 Sample Placement

Firstly, specimens are carefully placed in the designated positions according to the requirements of the relevant standards. Precise specimen placement is essential as it can affect the accuracy of the test results. Any misalignment may lead to uneven pressure distribution on the sample, resulting in inaccurate measurement of the indentation depth later.

4.2 Adding the Load

Secondly, a 2.5N weight is placed on the blade. This weight provides a standardized pressure on the sample during the high - temperature test, ensuring that the test conditions are consistent and comparable for different samples.

4.3 Heating Treatment

Thirdly, the apparatus with the specimen in place is transferred to the heating cabinet. The temperature inside the heating cabinet is maintained at 200±5°C for 2 hours. This high - temperature exposure simulates extreme operating conditions that the materials may encounter in practical applications. The stable temperature control is crucial for obtaining reliable test results.

4.4 Cooling the Specimen

After the heating process, the specimen is removed from the apparatus and cooled by immersion in cold water. This rapid cooling step helps to fix the indentation formed during the high - temperature test, making it easier to observe and measure accurately.

4.5 Observation and Measurement

Finally, the impression on the specimen is observed and measured. The depth of the indentation is a key indicator of the material's high - temperature resistance. A shallower indentation indicates better high - temperature resistance, while a deeper one suggests that the material may be more prone to deformation or failure under high - temperature and pressure conditions. By analyzing these measurements, manufacturers and quality controllers can make informed decisions about the quality and suitability of the materials for their intended applications.
