In - Depth Analysis of IPX1 and IPX2 Waterproof Rating Tests

In the realm of electronic and mechanical devices, safeguarding against water ingress is a fundamental aspect of ensuring product reliability and longevity. The IP (Ingress Protection) rating system provides a standardized way to evaluate a device's resistance to water and other foreign substances. Among the various IP ratings, IPX1 and IPX2 are the initial steps in assessing a device's water - resistance capabilities.

1. IPX1 Waterproof Rating Test

1.1 Test Method

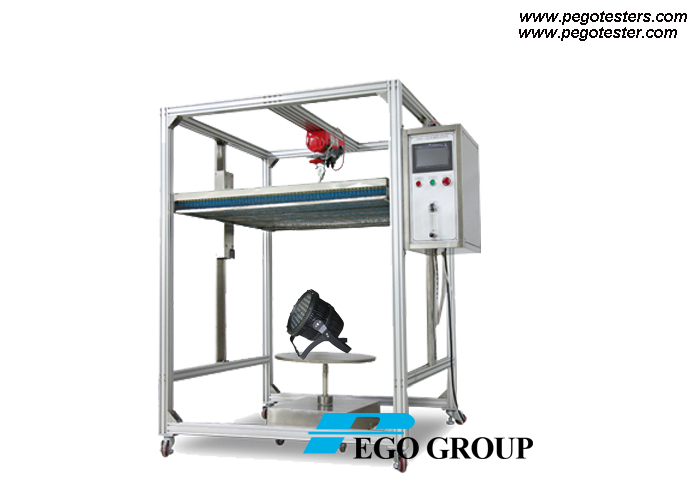

The IPX1 test is designed to evaluate a device's ability to withstand vertically dripping water. In a typical test setup, the device is placed in a test chamber. A calibrated water - dripping apparatus is positioned directly above the device. The water droplets are released at a specific rate, usually 1 mm/min of water equivalent rainfall. The test duration is typically 10 minutes. This controlled environment mimics real - world scenarios where a device might be exposed to water dripping from a ceiling or a similar source.

During the test, the device is carefully monitored for any signs of water ingress. Any water that enters the device's enclosure and comes into contact with sensitive components, such as electrical circuits, indicates a failure of the waterproofing mechanism.

1.2 Application Scenarios

IPX1 - rated devices are suitable for indoor environments where there is a minimal risk of water exposure. For example, a desktop computer in a normal office setting may not be expected to encounter water, but in case of a minor plumbing leak or accidental spill from a nearby water container, an IPX1 rating ensures that the device can tolerate the vertically dripping water without immediate damage.

Some small electronic devices like table lamps or wall - mounted chargers that are not likely to be exposed to more complex water - exposure scenarios can also benefit from an IPX1 rating. This rating gives consumers a basic level of assurance that the device can handle simple water - related incidents in a typical indoor environment.

1.3 Impact on Product Design

For manufacturers aiming for an IPX1 rating, the focus is on basic sealing mechanisms. Simple gaskets or rubber seals around the device's enclosure can be sufficient to prevent vertically dripping water from entering. However, even this basic level of protection requires careful consideration during the design phase. The choice of materials, the fit of components, and the overall construction of the enclosure need to be optimized to ensure effective water resistance.

2. IPX2 Waterproof Rating Test

2.1 Test Method

The IPX2 test builds on the IPX1 test but adds an additional challenge. In this test, the device is not only exposed to vertically dripping water but also to dripping water when the enclosure is tilted at an angle of up to 15°. The test is carried out in a similar test chamber as the IPX1 test. First, the device is tested in the vertical position for 10 minutes, just like in the IPX1 test. Then, the device is tilted to one of the four principal angles (front, back, left, or right) by 15° and exposed to the dripping water for another 10 minutes at each angle.

The water - dripping rate remains the same as in the IPX1 test, 1 mm/min. Similar to the IPX1 test, the device is closely monitored for any signs of water ingress during each stage of the test.

2.2 Application Scenarios

IPX2 - rated devices find applications in environments where there is a slightly higher risk of water exposure compared to those suitable for IPX1 - rated devices. For instance, portable electronics like e - book readers or digital cameras that may be used while lying on a table at a slight angle in a room with a leaky roof could benefit from an IPX2 rating.

Some small kitchen appliances such as hand - held blenders or electric kettles that might be used in a kitchen with a wet countertop and could be tilted during operation can also be designed with an IPX2 rating in mind. This rating ensures that the device can withstand water dripping from different angles that may occur during normal use in such environments.

2.3 Impact on Product Design

Achieving an IPX2 rating requires more sophisticated design considerations compared to IPX1. The device's enclosure needs to be designed in such a way that the sealing mechanisms remain effective even when the device is tilted. This may involve the use of more complex gasket designs, better - fitting components, and additional measures to prevent water from seeping in through gaps that may open up when the device is tilted.

Manufacturers may also need to consider the internal layout of the device. Sensitive components should be placed in areas where they are less likely to be affected by water that might enter at an angle. Additionally, drainage channels or water - wicking materials may be incorporated into the design to help manage any water that does manage to enter the enclosure.

3. Comparison between IPX1 and IPX2

While both IPX1 and IPX2 are relatively low - level water - resistance ratings, the difference between them is significant. IPX1 focuses solely on vertical water drips, which is a very basic form of water exposure. In contrast, IPX2 takes into account the device's orientation and the potential for water to drip at an angle. This added complexity in the IPX2 test means that devices with this rating are more versatile in terms of the environments they can withstand.

In terms of product design, the jump from IPX1 to IPX2 requires a more comprehensive approach. The design changes needed to achieve an IPX2 rating are not just incremental but often involve a re - evaluation of the entire enclosure design and the placement of internal components.

4. Conclusion

IPX1 and IPX2 waterproof rating tests play a crucial role in the design and evaluation of a wide range of products. They provide a basic level of water - resistance protection that is essential for many everyday devices. Understanding the test methods, application scenarios, and the impact on product design for these ratings helps manufacturers create products that are more reliable and suitable for their intended use environments. For consumers, being aware of these ratings allows them to make more informed decisions when purchasing products, especially in terms of the device's ability to withstand potential water - related incidents. As technology continues to advance and devices become more integrated into our daily lives, the importance of these basic waterproof ratings will only increase.
