In-Depth Analysis Water Ingress Protection Test

In today's world, where electronic devices are an integral part of our daily lives, ensuring their durability and protection against environmental factors is crucial. One of the most common and important factors is water resistance, and this is where the IP waterproof rating test comes into play.

1. What is the IP Waterproof Rating?

The IP (Ingress Protection) code is an international standard (IEC 60529) that classifies and rates the degree of protection provided by mechanical casings and electrical enclosures against intrusion from foreign objects such as dust, dirt, and water. The IP code consists of two digits following the letters "IP". The first digit represents the level of protection against solid objects, while the second digit indicates the degree of protection against water ingress.

2. The Significance of Each Digit in the IP Rating for Water Resistance

Second Digit: Water Protection

· IPX0: No protection against water. Devices with this rating are not suitable for any water - exposed environments.

· IPX1: Protected against vertically dripping water. This means that if the device is in an environment where water is dripping straight down, it should be able to withstand it without damage.

· IPX2: Protected against dripping water when the enclosure is tilted up to 15°. This is useful for devices that may be used at a slight angle in damp conditions.

· IPX3: Protected against spraying water. Water sprayed at an angle of up to 60° from the vertical should not cause any harmful effects to the device.

· IPX4: Protected against splashing water from any direction. Devices with this rating can handle water splashes from all sides, making them more suitable for use in environments where water splashing is common, such as near sinks or in light rain.

· IPX5: Protected against water jets. A water jet from a nozzle with a specified pressure and volume can be directed at the device from any direction without causing damage. This is often required for devices used in industrial settings or outdoors in wet conditions.

· IPX6: Protected against powerful water jets. Similar to IPX5, but the water jet is more powerful, which is important for devices that may be exposed to heavy rain, water from hoses, or other high - pressure water sources.

· IPX7: Protected against immersion in water up to 1 meter for 30 minutes. This rating is essential for devices that may accidentally fall into shallow water, like a smartphone in a pool or a watch in a sink.

· IPX8: Protected against continuous immersion in water under specific conditions. This rating is for devices that are designed to be used underwater, such as some diving watches or underwater cameras. The specific immersion depth and time are determined by the manufacturer, but it generally implies a higher level of water resistance compared to IPX7.

· IPX9: This rating represents the highest level of water protection in the IP rating system for water exposure scenarios. Devices with IPX9 rating are designed to withstand high - temperature, high - pressure water jets typically used in industrial road vehicle. The test involves exposing the device to water jets at a temperature of around 80°C, with a pressure of 100 bar (10 MPa) and a flow rate of 14 - 16 liters per minute. The water jets are directed at the device from four different angles (0°, 30°, 60°, and 90°) for 30 seconds each, while the device is in a specific position relative to the nozzle.

3. How are IP Waterproof Ratings Tested?

The testing process for IP waterproof ratings is highly standardized. For water - related tests:

· For IPX1 - IPX2: The device is placed in a test chamber where water is dripped or sprayed at a specific angle and volume for a set period. The test equipment is calibrated to ensure accurate simulation of real - world water - dripping scenarios.

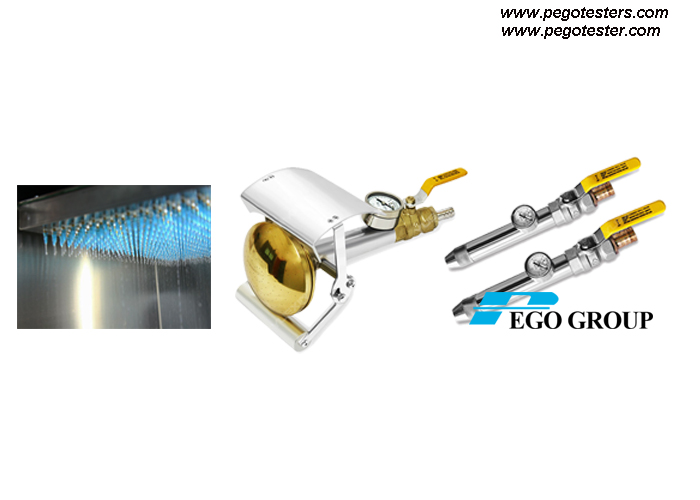

· For IPX3 - IPX4: Specialized spray nozzle or oscillating tubes are used to direct water at the device from different angles. The water pressure, volume, and spraying time are strictly controlled according to the standard.

· For IPX5 - IPX6: High - pressure water jets are used to simulate more extreme water - exposure situations. The device is rotated and exposed to the water jet from various directions to ensure comprehensive testing.

· For IPX7 - IPX8: The device is immersed in water tanks at specific depths for the required time. During the immersion, the device is monitored to ensure that no water enters the enclosure and causes damage to the internal components.

· For IPX9: As mentioned above, the test setup involves high - temperature, high - pressure water jets. Specialized test rigs are used to precisely control the water temperature, pressure, flow rate, and the angles of water jet application. The device under test must be able to withstand this intense water exposure without any water ingress that could damage its internal components.

· Device Durability: A proper IP waterproof rating test ensures that the device can withstand water exposure during its normal use. This extends the lifespan of the device, reducing the risk of damage due to water ingress.

· User Safety: In some cases, such as with electrical devices, water ingress can pose a safety hazard. By having a reliable IP waterproof rating, users can be confident that the device is safe to use in wet conditions.

· Marketability: In today's competitive market, consumers are more likely to choose a product that has a high IP waterproof rating. It gives them peace of mind, especially when using the device in various environments.

5. Applications of IP Waterproof Rating Test

· Consumer Electronics: Smartphones, tablets, smartwatches, and earphones often undergo IP waterproof rating tests. For example, many high - end smartphones now have an IP68 rating, making them suitable for use in the rain or even accidental submersion.

· Industrial Equipment: In industrial settings, machinery and control panels need to be protected from water, especially in areas where there is water spraying during production processes or in outdoor industrial environments.

· Marine and Outdoor Equipment: Boats, diving equipment, and outdoor cameras rely on their IP waterproof ratings to function properly in wet and humid conditions.

In conclusion, the IP waterproof rating test is a vital process that ensures the reliability, safety, and functionality of a wide range of devices in different environments. Understanding the IP rating system and the importance of these tests can help consumers make more informed decisions when purchasing products and also help manufacturers produce high - quality, water - resistant products.
