Application of Oscillating Tube in IPX3 and IPX4 Tests

1. Introduction to Waterproof Testing

In today's diverse and demanding market, the waterproof performance of products has become a crucial factor affecting both product quality and user experience. From everyday electronic devices like smartphones and smartwatches to automotive components and outdoor equipment, water resistance is no longer a luxury but a necessity.

Our oscillating tube waterproof testing equipment is a top - tier solution designed to meet the rigorous demands of waterproof testing, especially for IPX3 and IPX4 tests as defined by the IEC60529 standard.

2. Standards Compliance: IPX3 and IPX4

The oscillating tube is specifically designed to comply with the IPX3 and IPX4 waterproof testing standards as defined by IEC60529.

2.1 IPX3 Test

For the IPX3 test, the equipment is configured to meet the following requirements. The oscillating tube has water - spraying holes distributed within an arc segment of 60° on each side along the vertical line. The test specimen's shell is placed at the center of the semi - circle of the oscillating tube. The oscillating tube swings 60° on each side along the vertical line, with a total swing of 120°. Each swing (2×120°) takes approximately 4 seconds, and the test duration is 5 minutes. Then, the shell is rotated 90° horizontally, and the test is conducted for another 5 minutes. This setup effectively simulates the condition of water splashing at an angle, which is a common scenario that products may encounter in daily use, such as when exposed to rain while being carried at an angle.

2.2. IPX4 Test

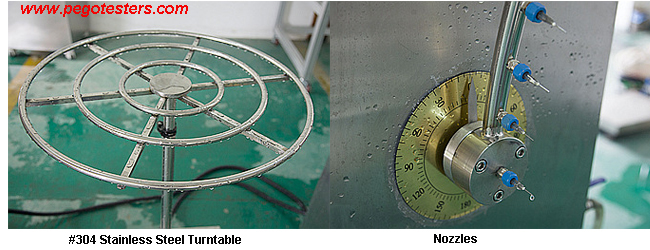

When it comes to the IPX4 test, the water - spraying holes are evenly distributed within a 180° semi - circle of the oscillating tube. The oscillating tube swings 180° on each side along the vertical line, with a total swing of about 360°. Each swing (2×360°) takes around 12 seconds, and the test lasts for 10 minutes. During the test, the support of the test specimen's shell should be perforated to prevent it from acting as a water - blocking plate. This ensures that the product is splashed with water from all directions, mimicking harsher water - exposure situations like being in a heavy rainstorm from different angles.

By precisely adhering to these IPX3 and IPX4 standards, oscillating tube testing equipment or oscillating tube test chamber made by PEGO provides accurate and reliable waterproof test results, allowing manufacturers to have full confidence in the water - resistance performance of their products.

3. Wide Applications

The oscillating tube rain testing equipment has a wide range of applications across various industries.

In the electronics industry, it plays a crucial role in ensuring the water resistance of smartphones, tablets, smartwatches, and other portable devices. For example, smartphone manufacturers use IPX3/4 test chamber to test their products' ability to withstand splashes and light rain. By subjecting the devices to IPX3 and IPX4 tests, they can identify potential design flaws in seals, ports, and enclosures, and make improvements to enhance the overall waterproof performance. This not only reduces the number of returns due to water - damage but also increases customer satisfaction and brand loyalty.

The automotive industry also benefits greatly from this test. It is used to test automotive components such as headlights, taillights, sensors, and connectors. These components are often exposed to water during driving in rainy conditions or car - washing. By conducting waterproof tests with our oscillating tube rain testing equipment, automotive manufacturers can ensure that these components function properly even when wet, reducing the risk of electrical malfunctions and potential safety hazards.

In the lighting industry, especially for outdoor lights like street lamps, garden lights, and floodlights, waterproof performance is essential. Our test apparatus helps manufacturers verify that their lighting products can resist water ingress, preventing short - circuits and extending the lifespan of the lights. This is crucial for maintaining the reliability of outdoor lighting systems, which are often exposed to various weather conditions.

4. Conclusion

In summary, our oscillating tube rain testing equipment is a reliable and efficient solution for waterproof testing. Its compliance with IPX3 and IPX4 standards, wide applications across multiple industries, and outstanding advantages make it stand out in the market. Whether you are in the electronics, automotive, or lighting industry, this apparatus can provide you with accurate and reliable waterproof test results. Don't hesitate to choose our oscillating tube rain test apparatus and take a step further in ensuring the water - resistance performance of your products.
