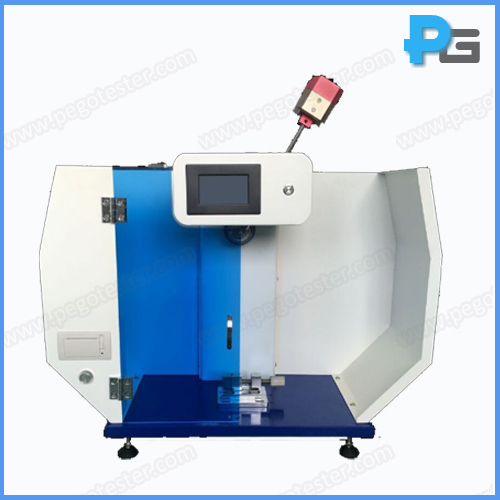

Digital Charpy Impact Strength Tester
1. Introduction
The digital charpy impact strength tester is mainly used for the determination of impact toughness of non-metallic materials such as hard plastic, reinforced nylon, glass reinforced plastic, ceramic, cast stone and electrical insulating materials. It is an ideal test equipment for chemical industry, scientific research institution, universities and colleges, and quality inspection departments. Meet the requirements of ISO179-2000, GB/T1043-2008, JB/T8762-1998 and GB/T 18743-2002.
2. Specifcation:
Display | LCD touch screen (built-in micro-printer) |
Units | J/m,KJ/m2 , kg-cm/cm, ft-ib/in |
Angle accuracy | 0.010 |
Impact energy accuracy | 0.01J |
Impact speed | 2.9m/s or 3.8m/s |
Distance between hammer to sample | 230mm, 395mm |
Angle | 150° |
Jaw support spacing | 40mm, 60mm, 70mm, 95mm |
Support blade corner radius | R=1mm |
Impact blade angle | 30° |
Impact blade corner radius | R=2mm±0.5mm |
Impact energy | 1J,2J, 4J, 5J (impact speed: 2.9m/s ) |
7.5J,15J,25J,50J (impact speed: 3.8m/s) |
3. Configuration List:
Type | Name | number | unit |
Mainframe | Impact test equipment | 1 | set |
Accessories | toolbox | 1 | set |
1J impact pendulum hammer | 1 | set |
2J, 4J, 5J impact weights | 1 | pair |
7.5J impact pendulum hammer | 1 | set |
15J impact weights | 1 | pair |
25J impact pendulum hammer | 1 | set |
50J impact weights | 1 | pair |
Sample clamp | 1 | suit |
socket head wrench | 1 | suit |
Printer (buit-in the equipemnt) | 1 | set |
