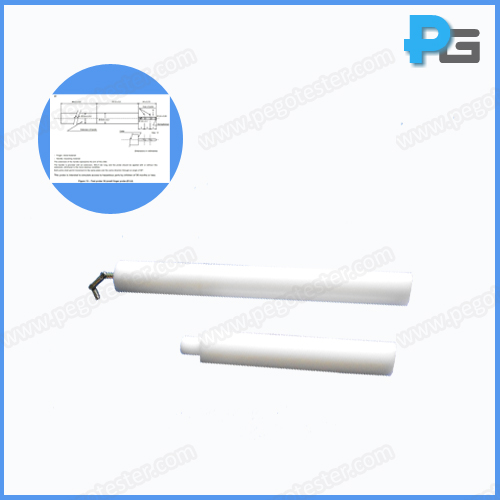

Test probe 19 ( Small Finger Probe Φ5.6mm )
1. Introduction

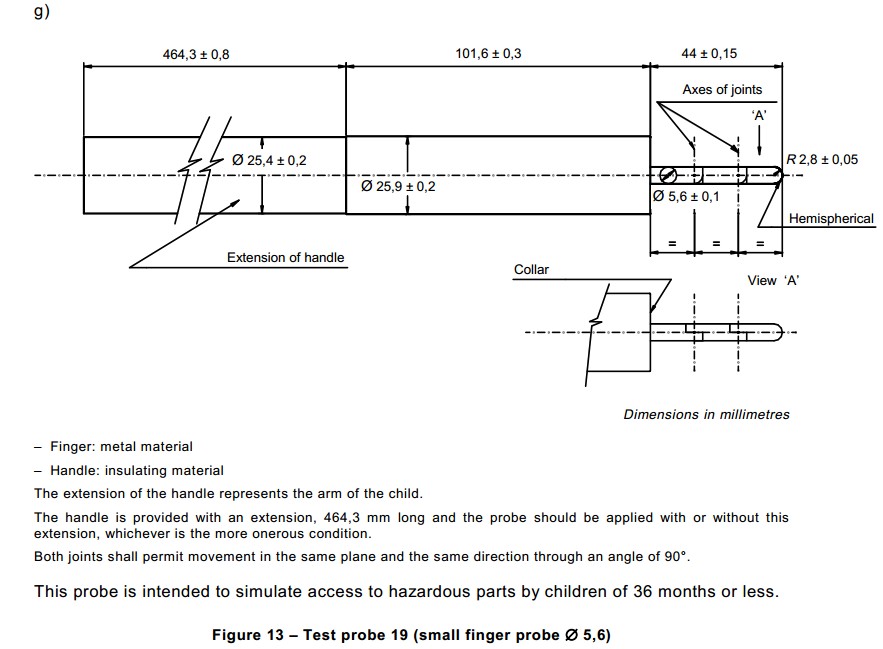

Test probe 19 ( Articulated children test finger / child small finger probe) is designed according to IEC61032 figure 13. This Probe is intended to simulate access to hazardous parts by children of 36 months or less.
The finger part of the probe is made of metal material, both joints can permit movement in the same plane and the same direction through an angle of 900. And the handle is made of insulating material, the extension of the handle is datchable. The extension of the handle represents the arm of the child.
2. Specification
Diameter of probe | 5.6mm |
Semi-diameter of probe | 2.8mm |
Length of probe | 44mm |
Diameter of first handle | 25.9mm |
Length of first handle | 101.6mm |
Diameter of second handle | 25.4mm |
Length of second handle | 464.3mm |
Material | Insulating material (handle), probe (metal) |
