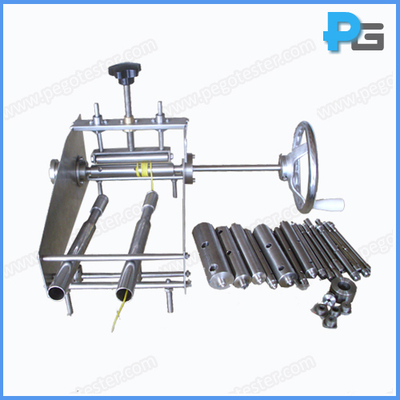

Cold Bend Test Apparatus
Detail
Description: The cold bend test apparatus is designed according to IEC60811-1-4 clause 8.1 and figure 1, IEC60884-1, VDE0472, GB2951.4 and GB2099-94 Model: PG-CBT

Cold Bend Test Apparatus

1. Introduction

The cold bend test apparatus is designed according to IEC60811-1-4 clause 8.1 and figure 1, IEC60884-1, VDE0472, GB2951.4 and GB2099-94. It is applied to the test the cores of circular cross-section having an external diameter up to and including 12.5mm, sector shaped cores when it is not possible to prepare dumb-bells, and cables with an overall diameter up to and including 12.5mm or flat cables with a major axis dimension up to and including 20mm. The apparatus is consisted by one revolving mandrel and guiding device, and it shall be held in a suitable low temperature cabinet before and during the test.


2. Specification:

Overall diameter of the test piece

Φ2.5mm~Φ12.5mm

Diameter of mandrel

Φ4.0mm~Φ46mm (totally 14 pieces)

Tube sleeve

Φ3.5mm*2, Φ6mm*2, Φ10mm*2, Φ12mm*2, Φ16mm*2

Number of turns

2~10 turns

Rotate speed

1r/5s

Working station

2

Material

SUS304 stainless steel

Working temperature

-15℃±1℃



Overall diameter (d) of test piece (mm)

Number of turns

d≤2.5

10

2.5<d≤4.5

6

4.5<d≤6.5

4

6.5<d≤8.5

3

8.5<d

2
