Product Detail
Combustion Sampling Device
Share to：

Combustion Sampling Device


Detail

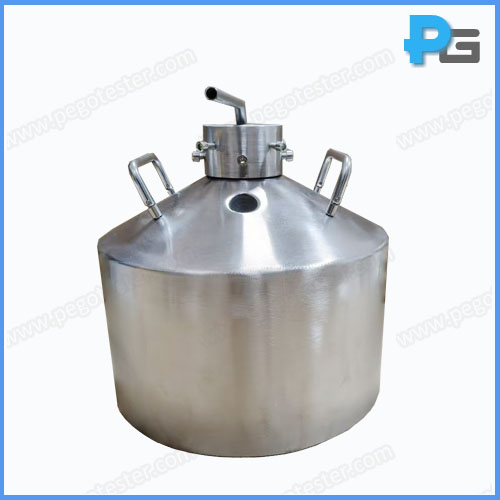

Description The sampling device is for the tests of products of combustion (CO2 concentration) designed according to EN30-1-1 figure 9 and figure 10 Model PG-EN30SD

Combustion Sampling Device

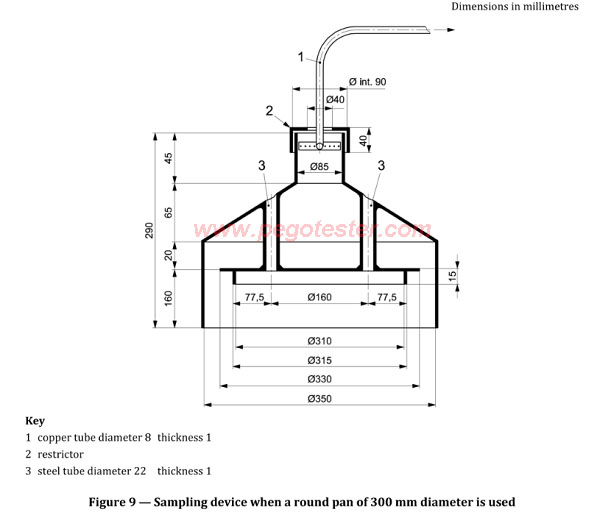

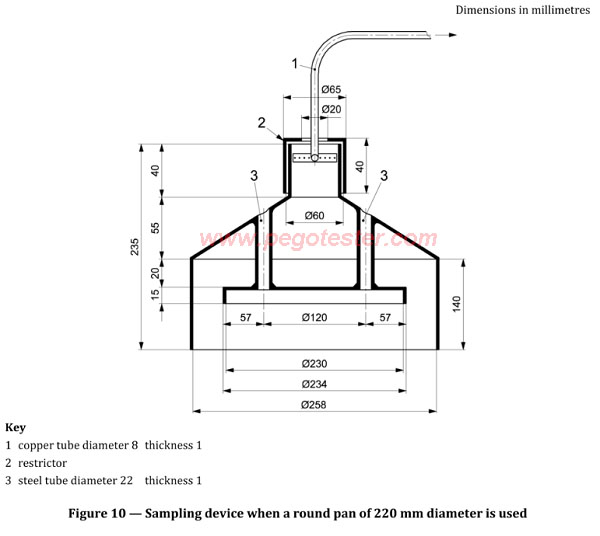

The sampling device is for the tests of products of combustion (CO2 concentration) designed according to EN30-1-1 figure 9 and figure 10. Combustion sampling device designed according to figure 9 is for when a round pan of 300mm diameter is used. Combustion sampling device designed according to figure 10 is for when a round pan of 220mm diameter is used.
