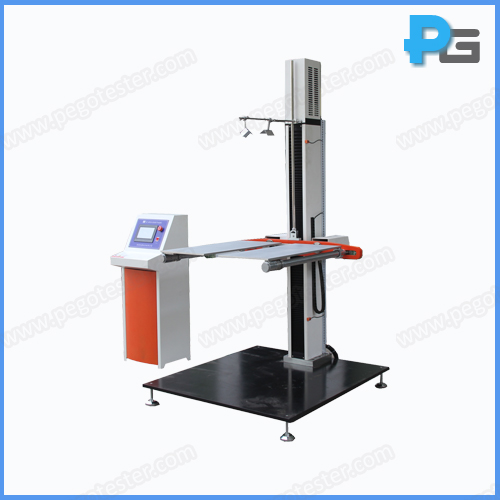

Free-Fall Drop Test Equipment
1. Introduction
The free fall drop test equipment is used for simulating a free fall drop of the container during the normal transit and rough handling, the test can be applied to a face, corner or edges of a container, and can meet the test requirements of CNAS 29999, ISO 2248-1985, ASTM D5276, IEC60068-2-75 and etc..
The free fall drop test can evaluate the ability of a container to withstand the sudden shock resulting from a free fall drop impact, or evaluate the ability of a container and its inner packing to protect its contents during the sudden shock resulting from a free fall drop impact, so that to improve and prefect the container design.
2. Specification
Overall size | L1200mm * D1100mm * H2050mm (test rig) L400mm * D430mm * H1150mm (control box) L780mm*W280mm |
Control unit | Touch screen |
Maximum size of test specimen | L800mm * W800mm * H1000mm |
Maximum weight of test specimen | 80KG |
Falling height | 400-1500mm |
Error of falling height | ±10mm |
Impact surface | Error: <10 Material: steel Thickness: 20mm Dimension: L1200mm*W1100mm |
Working power | 220V/50Hz |
