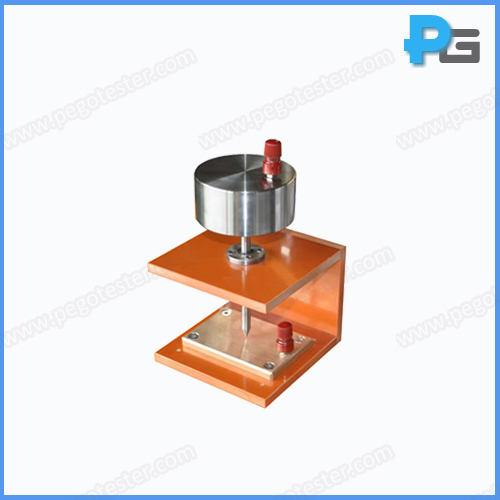

Dielectric Strength Test Device with Hardened Steel Pin
1. Introduction
The dielectric strength test device is designed to meet the test requirements of IEC60335-1 clause 21.2, a hardened steel pin is used as a electrode during the dielectric strength test. After the scracth test, the device should work with a hipot tester to test the withstand dielectric strength of the accessible parts of the solid insulation.
2. Parameter
Hardened steel pin | Pin tip: 40°Conical sharp Tip radius: 0.25 mm ± 0.02 mm |
Load | 30N±0.5N |
