Exploring the Environmental Chamber IPX56 Water Jet Test Device

In today's rapidly developing technology era, electronic products and electrical equipment are everywhere. From daily used smartphones and tablets to electrical control cabinets and outdoor lighting equipment in the industrial field, they all face various environmental challenges, among which the invasion of water cannot be ignored. To ensure that these devices can still work properly in humid or even strong water impact environments, the waterproof performance test is crucial, and the environmental chamber IPX56 water jet test device is the core equipment in this testing process.

1. Interpretation of IPX5 and IPX6 Standard

The IP (Ingress Protection testing) protection level system is formulated by the International Electrotechnical Commission (IEC Standards) and is used to define the dustproof and waterproof capabilities of electrical equipment. In IPX56, "IP" represents the protection level, "X" indicates that the dustproof level is not specified, and "5" and "6" respectively correspond to different levels of waterproof test.

The IPX5 test requires that the device can withstand the water jet from a nozzle in all directions without harmful effects. During the test, the jet nozzle with an inner diameter of 6.3mm is used, the water flow rate is 12.5L/min, the water pressure is about 30kPa, the distance from the sample is 2.5 - 3m, and the continuous water spraying time is at least 3min.

The IPX6 test is more stringent, requiring that the device can withstand strong sea waves or water gun jets without harmful effects. During the test, the hose nozzle with an inner diameter of 12.5mm is used, the water flow rate is 100L/min, the water pressure is about 100kPa, the distance from the sample is 2.5 - 3m, and the continuous water spraying time is at least 3min. Through these two levels of testing, the waterproof performance of the device under different degrees of strong water impact can be effectively tested.

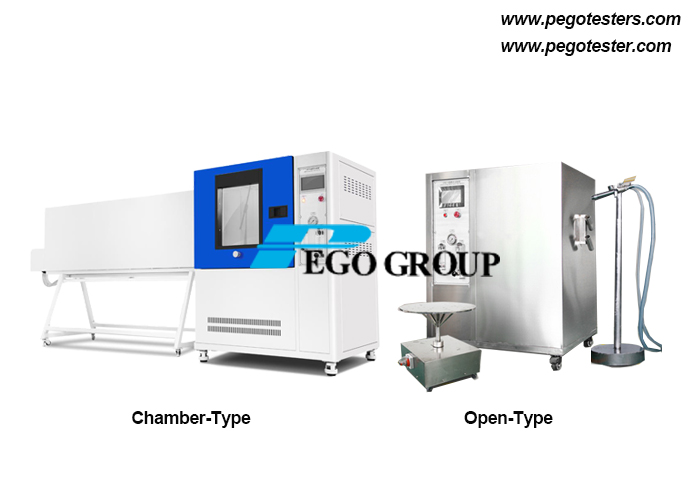

2. Structural Composition of Pego IPX56 Water Jet Test Device

Water Supply System: This is the basic part of the device, responsible for providing water with the required flow rate (12.5L/min and 100L/min) and pressure for the test. It usually includes a water tank, a water pump, and a series of valves and pipelines. The water tank is used to store a sufficient amount of 550L water, and the water pump pumps the water out of the water tank and pressurizes it, and then delivers the water to the water spraying system through valves and pipelines. To ensure the stability of water pressure and water flow rate, the water supply system is also equipped with a pressure regulating device and a flow control device.

Water Spraying System: This is the core part of the test device, directly determining the water spraying effect and uniformity. The IPX56 test device is equipped with diameter of 6.3mm and 12.5mm nozzles. The inner diameter and structure of the nozzles vary according to the different test requirements of IPX5 and IPX6. These nozzles are installed on an adjustable spray frame, and the spray frame can achieve multi - angle rotation, ensuring that water can be sprayed onto the tested sample from all directions. For example, during the IPX5 test, the spray frame can swing at a certain angle in the horizontal and vertical directions to simulate water spraying from different directions; while in the IPX6 test, the swing range of the spray frame is larger, and it can quickly switch the water spraying direction to simulate the effect of sea wave impact.

Sample Fixing System: To ensure the accuracy and repeatability of the test, the tested sample needs to be firmly fixed in a specific position. The sample fixing system usually includes various fixtures, brackets, etc., which can adapt to samples of different shapes and sizes. For example, for small electronic products, specially designed fixtures can be used to fix them on the bracket to ensure that the water sprayed from the nozzle can evenly cover the surface of the sample; for large electrical equipment, a special fixed platform may need to be customized, and the equipment is fixed on the platform by bolts and other methods. At the same time, ensure that there is enough space around the equipment for the water to spray freely, avoiding the influence of water flow obstruction on the test results.

Control System: It is like the "brain" of the test device, responsible for the control and monitoring of the entire test process. Operators can set test parameters through the control system, such as water spraying time, water pressure, water flow rate, spray frame swing angle and frequency, etc. During the test, the control system collects data from various sensors in real-time, such as data from pressure sensors and flow sensors, and monitors the movement state of the spray frame, etc. Once it is found that the test parameters deviate from the set value or other abnormal situations occur, the control system will immediately issue an alarm and take corresponding measures, such as automatically stopping the test, to ensure the safety and accuracy of the test.

3. Working Principle of IPX56 Water Jet Test Device

When the IPX56 water jet test device is started, the water pump in the water supply system starts to work, pumping the water in the water tank and pressurizing it. The pressurized water is transported to the water spraying system through pipelines. When passing through the nozzle, due to the special structural design of the nozzle, the water will be sprayed out at a specific flow rate and angle.

In the IPX5 test, according to the set parameters, the spray frame drives the nozzle to swing in a certain range at multiple angles, so that water is sprayed onto the surface of the sample from different directions at a flow rate of 12.5L/min and a pressure for a duration of 3min. This process simulates situations such as water splashing from various directions or light rain that the device may encounter in daily life.

While in the IPX6 test, the movement range and speed of the spray frame change to simulate the effect of sea waves or strong water gun jets. At this time, water impacts the sample from all directions at a large flow rate of 100L/min and a relatively high pressure for the same duration of 3min. During the entire test process, the sample fixing system ensures the stable position of the sample, and the control system monitors and adjusts various parameters in real-time to ensure that the test is carried out according to the predestinate standards and processes.

4. Application Fields of IPX56 Water Jet Test Device

Consumer Electronics Industry: With the popularization of mobile devices such as smartphones, smartwatches, and tablets, people have higher and higher requirements for their waterproof performance. These devices are very likely to come into contact with water in daily use, such as using in rainy days or accidentally dropping into water. Through the test of the IPX56 water jet test device, it can be ensured that the device can still work properly in these situations, providing consumers with a reliable user experience. For example, a certain brand of smartphone will undergo strict IPX56 waterproof testing before being launched. Only products that pass the test can enter the market for sale, which greatly enhances consumers' confidence in product quality.

Outdoor Lighting Industry: Outdoor lighting equipment such as street lights, landscape lights, and garden lights are exposed to the natural environment for a long time, and the erosion of rain is common. If the waterproof performance of lighting equipment is not good, it is easy to cause problems such as internal circuit short - circuit and lamp damage, affecting the lighting effect and service life. Using the IPX56 water jet test device to test the waterproof performance of outdoor lighting equipment can screen out products with good waterproof performance, ensuring that they can operate stably in outdoor environments and providing guarantee for urban night lighting and landscape construction.

Industrial Electrical Field: In industrial production, many electrical equipment, such as electrical control cabinets, motors, sensors, etc., need to be installed in humid or water - splashing environments. Once these devices are flooded with water, serious safety accidents may occur, affecting the normal progress of production. Through the waterproof detection of industrial electrical equipment by the IPX56 water jet test device, it can ensure the reliable operation of the equipment in harsh industrial environments and improve the safety and stability of production. For example, in some chemical enterprises, there are a large amount of water vapor and corrosive gases in the production workshop. Electrical equipment must have good waterproof performance. Equipment tested by IPX56 can effectively resist the impact of these harsh environments.

5. Conclusion

As an important tool for waterproof performance testing, the IPX56 water jet test device plays an irreplaceable role in ensuring the reliability of various devices in humid and strong water impact environments. With the continuous progress of technology and the increasing requirements of people for product quality, the IPX56 water jet test device is also constantly innovating and improving, and its application fields will be further expanded. It will continue to escort the product quality of various industries and promote the development and progress of the industry. Whether it is the lightweight and fashionable consumer electronics or the sturdy and durable industrial electrical equipment, behind them is such a precise and important testing equipment, ensuring that each product can show excellent performance in a complex water environment.
