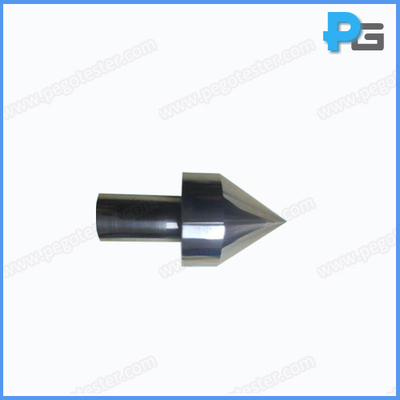

Test Hammer for Fragmentation Test
Detail
Description: Test hammer is designed according to IS015717 clause 5.10 and figure 2, IEC60335-2-9, the fragmentation test is be carried out on the glass. Model: PG-TH15717

Test Hammer for Fragmentation Test of Glass

1. Introduction

The test hammer for fragmentation test having a head with a mass of 75g±5g and a conical tungsten carbide tip with a angle of 60°±2°, it is designed according to IS015717 clause 5.10 and figure 2, IEC60335-2-9, the fragmentation test is carried out on the glass.


2. Parameter

Tip angle

60°±2°

Mass

75g±5g

Material

tungsten carbide

Standard

ISO15717 clause 5.10 and figure 2, IEC60335-2-9

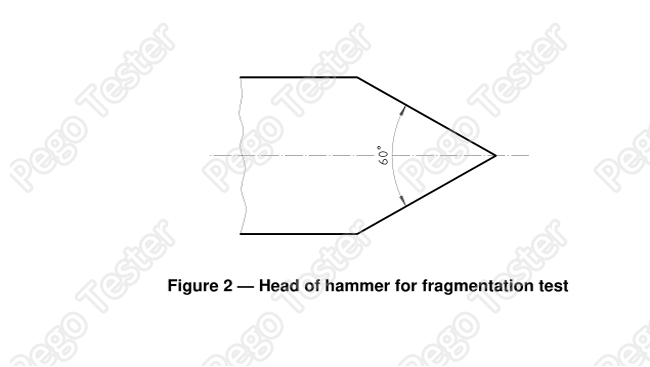

3.Figure
