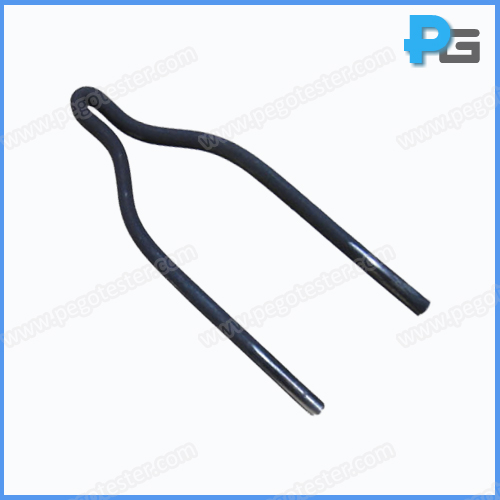

U Sharp glow-wire Loop
1. Introduction
Glow-wire (U sharp) is designed according to GB/T5169.10 and IEC60695-2-10, the glow-wire loop is made by Nickel/Chromium (80/20).
2. Specification
| Diameter | 4mm±0.04mm |
| Width | 9mm~10mm |
| Length | ＞70mm |
| Glow wire material | Ni/Cr (80/20) |
| Standard | GB/T5169.10, IEC60695-2-10 |
