IPX5 and IPX6 Waterproof Tests: A Comparative Analysis

In the contemporary world, where electronic and mechanical devices are omnipresent in our daily lives and various industrial sectors, the ability to withstand water exposure is of utmost importance. Among the diverse range of waterproof testing standards, IPX5 and IPX6 stand out as they simulate rather intense water - related scenarios that products might encounter in real - life situations.

1. Decoding the “IP code”

The IP (Ingress Protection) code is an international benchmark that classifies the degree of protection offered by the enclosures of electrical equipment against foreign objects   and water. The second digit in the IP code, ranging from IPX1 to IPX9, dedicates to specifying the water resistance capabilities. Starting from IPX0, which implies no protection against water, to IPX9, which offers protection against high - pressure/steam water jets under specific conditions, the scale is comprehensive. IPX5 and IPX6 are pivotal levels within this system. They are designed to test how well a product can endure water jets, a common form of water exposure. For example, in outdoor settings during heavy rain, in car washes where high - pressure water is used, or in certain industrial processes involving water spraying, products need to be resilient. These two levels play a crucial role in validating the reliability of products used in outdoor, industrial, and many other applications where water jet exposure is a likely occurrence.

2. Unpacking the IPX5 Waterproof Test

2.1 Equipment Prerequisites

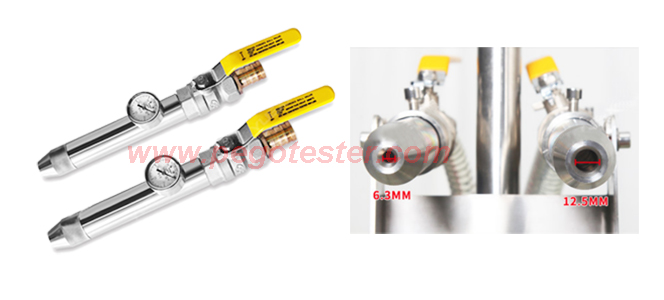

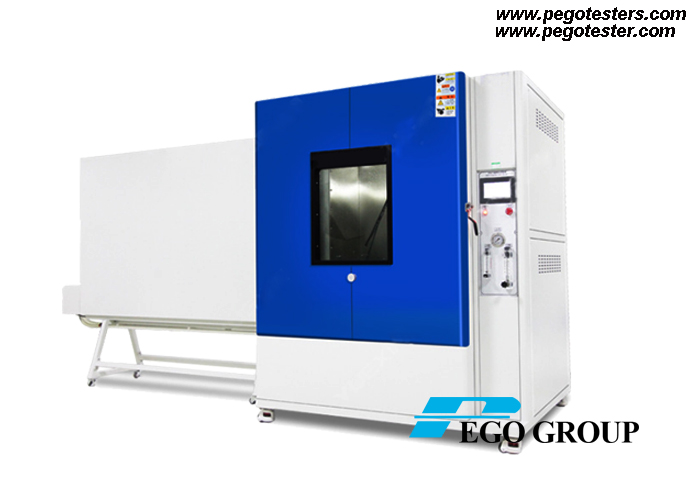

To conduct an IPX5 test accurately, specific equipment is essential. A water jet hose nozzle with an inner diameter of 6.3mm is a fundamental requirement. This nozzle engineers to generate a water jet with the precise characteristics demanded by the test. Additionally, a reliable flow meter is indispensable. The flowmeter is to measure and maintain the water flow rate precisely, ensuring the test's accuracy.

2.2 Step - by - Step Procedure

The test commences by placing the sample on a stable platform, like a turntable. The nozzle should be positioned at a distance of 2.5 to 3 meters away from the sample. And arrange the sample in a way that allows the water jet to cover all possible working positions of the product. The water flow rate is set to 12.5±0.625 L/min. Subsequently, the water jet is directed at the sample from all directions. The test duration is calculated based on the surface area of the sample's outer shell. For every square meter of the surface area (excluding the installation area), the test is carried out for at least 1 minute, with a minimum total test time of 3 minutes. Once complete the test, inspect the sample meticulously for any signs of water ingress, such as water stains, water accumulation inside the product, or any malfunctions indicating water - related damage.

2.3 Industry Applications Galore

IPX5 testing finds extensive applications across various industries. In the realm of outdoor electronics, it is commonly used for outdoor lighting fixtures like streetlights and garden lights. Ruggedized smartphones and tablets also undergo this test. Additionally, certain components of carts, such as headlights and taillights, are subjected to IPX5 testing. Since these outdoor appliances are frequently exposed to heavy rain or water splashes, the IPX5 test helps manufacturers enhance the design and quality of their products. When a product passes the IPX5 test, it instills confidence in users that their device will continue to function even in a heavy - rain environment.

3. Delving into IPX6 Waterproof Test

3.1 Equipment Requirements

The equipment for the IPX6 test shares some similarities with that of the IPX5 test, but there are also significant differences. Similar to the IPX5 test, it requires a water jet hose nozzle. However, the inner diameter of the nozzle for IPX6 is 12.5mm. This larger - diameter nozzle is designed to produce a more powerful and intense water jet. A more robust flow - regulating device is also needed to ensure a stable water flow rate of (100±5) L/min.

3.2 The Testing Procedure Unveiled

Firstly, place the sample on a secure and stable turntable. And then position the nozzle 2.5 meters away from the sample. After that, the water jet is directed at the sample from all possible directions. Carry out the test continuously for 3 minutes. During this period, the water jet should cover the entire surface of the sample evenly. Once the 3 - minute test is over, carefully examine the sample for any signs of water penetration, such as water droplets inside the product, water - induced malfunctions, or any visible water - related damage to the internal components.

3.3 Industry Applications in Harsh Environments

IPX6 testing mainly applies to equipment that is expected to operate in more extreme and harsh water - exposed environments. Heavy - duty machines used in mining, construction, and ship - building industries are prime examples. High - end expedition - grade tents also undergo this test. Passing the IPX6 test ensures that the electrical components, control panels, and other sensitive parts of these products can function properly even in such harsh conditions.

In conclusion, understanding the IPX5 and IPX6 waterproof tests is crucial for both manufacturers and consumers. Manufacturers can use these tests to improve their product quality, while consumers can make more informed decisions when purchasing products for use in water - prone environments.
