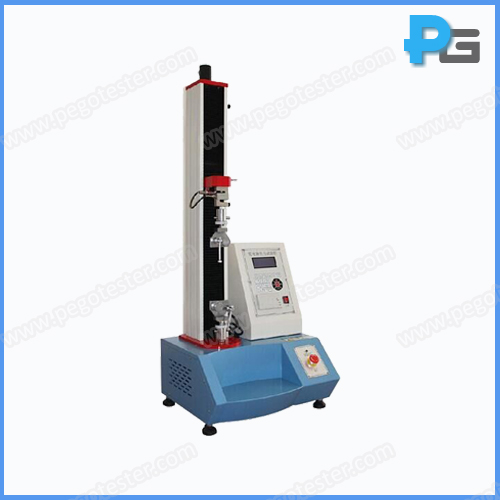

Microcomputer Type Tensile Test Equipment(JY-108)
1. Introduction
Tensile Test Equipment is mainly applied to the industries of metal, cable,adhesive tape, fiber, paper, spring, rubber and many others for the test of stretch, tear, peel, resistance and bend. The equipment is completely meet the requirements of ISO7500/1, JJG475-88, ASTME4, DIN5122, EN1002-2, BS1610, CNS9471/9470 and etc. Adopts LCD touch screen to display in English. The tensile test equipment has the functions of recording the peak value, current value and unit, keyword setting, correction, make point and etc. System can auto records the data while sample broken. JY-108 tensile test equipment is consisted by reduction gear, drive, drive screw, guide peg, bearing, clamps and control box.
2. Parameter
● Capacity selection: 5KG, 10KG, 20KG, 50KG, 100KG, 200KG
● Accuracy: class 1
● Test range: 0.4%-100% FS
● Force accuracy: ±1%
● Force resolution: 1/200000
● Displacement indication error: ±1%
● Displacement resolution; 0.005mm
● Control system: frequency converter
● Drive mode: AC variable frequency motor
● Test speed: 50-200mm/min
● Test Distance: 600mm
● Protection device: distance bound, breakpoint halt, overload protection
