IEC60335-2-24 Scratch Test Pin
Detail
Description: IEC60335-2-24 Scratch Test Pin Model: PG-STP24

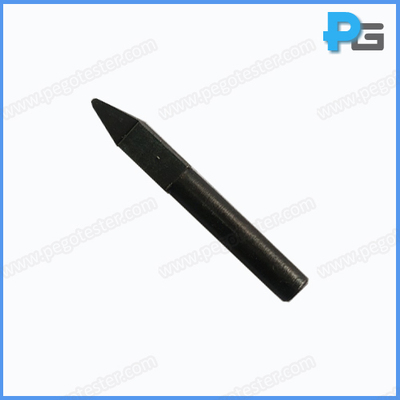

IEC60335-2-24 Scratch Test Pin

1. Introduction

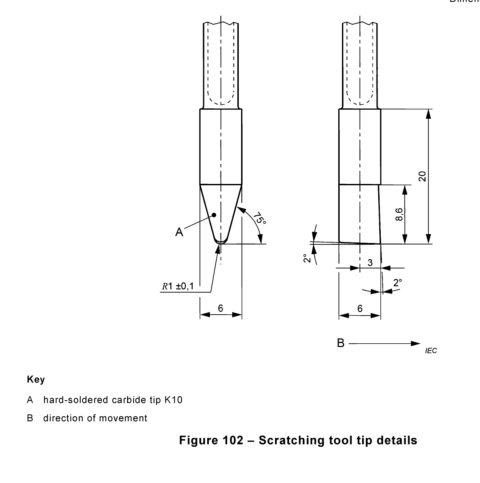

The scratch test pin is designed according to IEC60335-2-24 fig. 102 and GB4706.13 Fig 102. It’s used to perform scratch tests on the accessible component surfaces of all protected cooling systems in appliances, including accessible surfaces that are in close contact with the protected cooling system.


2. Parameters:

Radius of Tip

1mm

Diameter of Tip

6mm

Length of Tip

8.6mm

Length of Pin

20mm
