1.8KG Test Vessel


Detail
Description 1.8kg test vessel is designed to meet the requirement of IEC60335-2-6 clause 21.102 and IEC60335-2-9 clause 20.101. Model PG-AV1.8

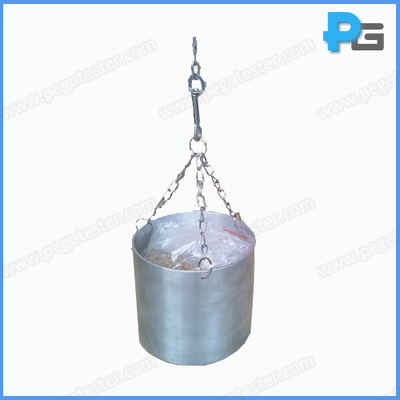

1.8KG Impact Test Vessel

1. Introduction

1.8kg test vessel is designed to meet the requirement of IEC60335-2-6 clause 21.102 and IEC60335-2-9 clause 20.101.The vessel is made of aluminum, and the flat base has a diameter of 120mm±10mm, its edges being rounded with a radius of at least 10mm. the vessel should be uniformly filled with a least 1.3kg of sand or shot so that the total mass is 1.8kg±0.01KG.

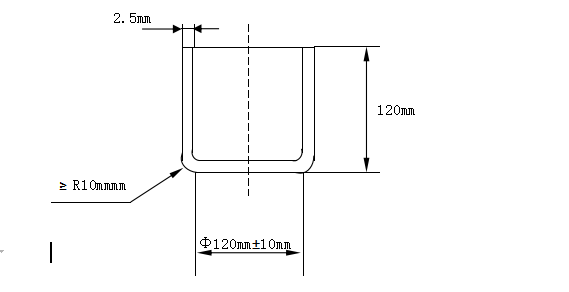

2.Parameter

diameter of the base

120mm±10mm

Height of the pan

120mm

rounded radius

≥10mm

Thickness of the wall

2.5mm
