IEC60335-1 Inclined Plane Device

IEC60335-1 Electrical Stability Tester/Inclined Plane Device

1. Introduction

Inclined plane stability tester is applied to test the stability and mechanical hazards of floor standing units in normal use, it is conforms to the standards IEC60335-1 clause 20.1, IEC60065 clause 19.1, IEC60950 clause 4.1.1 and etc..

Inclined plane device is used to test the stability performance of household and similar electrical appliances which used on a table or on the floor rotating at a certain angle of inclination.

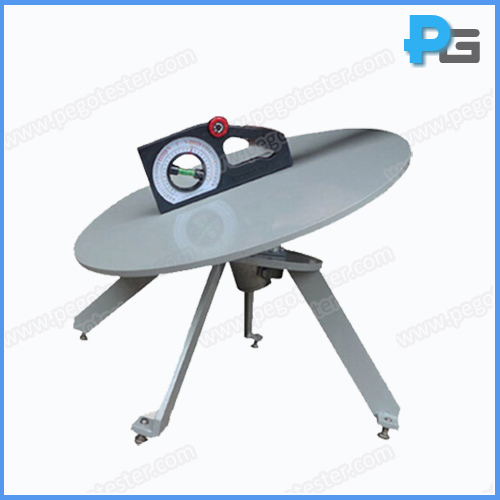

Inclined plane device is consisted by a surface and an angle adjusting device, the angle is adjustable at the range of 0 to 30 degrees, the rotation speed is 1rpm. The appliance is placed in its intended position of use a plane, inclined at an angle of 10⁰ or 15⁰ to the horizontal, and then rotated slowly through an angle of 360⁰ about its normal vertical axis, during the tests, the apparatus shall not overturn.

2. Specification
