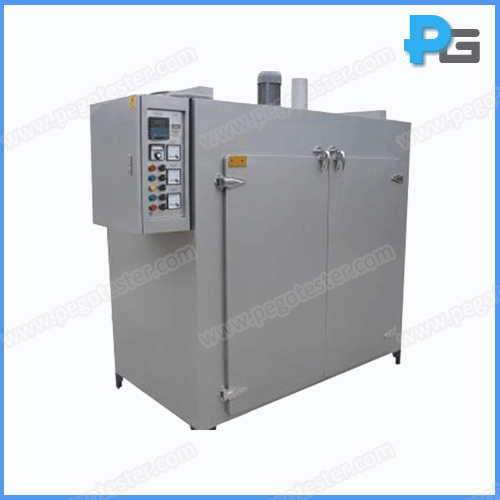

Industrial Oven
1.Introduction:
Oven is widely applied to the fields of motor, glass, ceramic, PC board, coating and etc. for the purpose of drying, preheat and finalize the design.The oven is consisted by working room, air supply device, Japanese control system, and protection system. Work with the ball pressure test apparatus can do the heating resistance test.
2.Parameter:
Working size | 700mm(L)*600mm(D)*1000mm (H)/420L |
Outer Size | 600mm(L)*700mm(D)*1100mm (H) |
Temperature range | RT＋10℃~250℃ |
Temperature fluctuation | ±1℃ |
Temperature uniformity | ≤±2℃ |
Temperature deviation | ±2℃ |
Material | Liner: stainless steel Outer shell: A3 steel plate heat preservation: Ultra-fine thermal insulation cotton Heating: electrical heater Observe window: glass |
Recycle system | Single cycle, using horizontal wind, with timing function, timing range: 0-99h |
Temperature control | solid state control |
Working power | AC 380V/50Hz (3 phases), 8KW |
Accessories | Shelf*2 |
