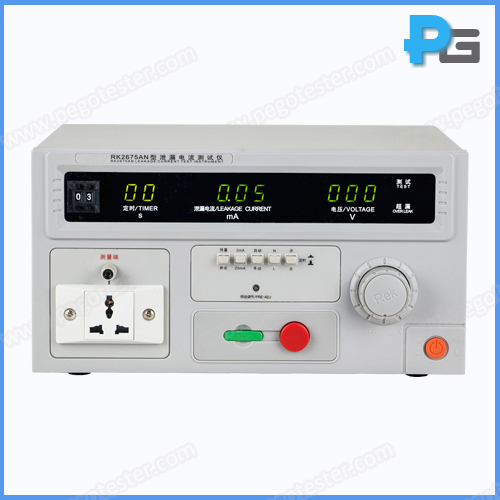

Leakage Current Tester
1. Introdution
RK2675 series leakage current tester is applied to test the leakage current caused by power supply, it's an important index to judge the quality of electronic appliance. Leakage current tester is widely used in household appliance, compressor, motor, cable and etc. RK2675 series tester has the alarming function, and the test time and value can be preset.
2. Parameters:
Model | RK2675S | RK2675A | RK2675B | RK2675C | RK2675D | RK2675E | RK2675W |
Output voltage | AC:50-430V | 0-250V |
Leakage current | AC: 0-2mA 2mA-20mA | AC: 0.01mA-20mA |
Resolution of current | 0.01mA |
Accuracy of current | ±3% |
Transformer power | 3kVA/6KVA | 500VA | 1000VA | 2000VA | 3000VA | 5000VA | NONE |
Test time | 1-999s |
Alarming set | Yes |
Display | LED digital
display(time/leakage current/voltage) |
Power supply | 220V±10%, 50Hz±5%) |
Condition | 0-40 degrees, <75%RH |
