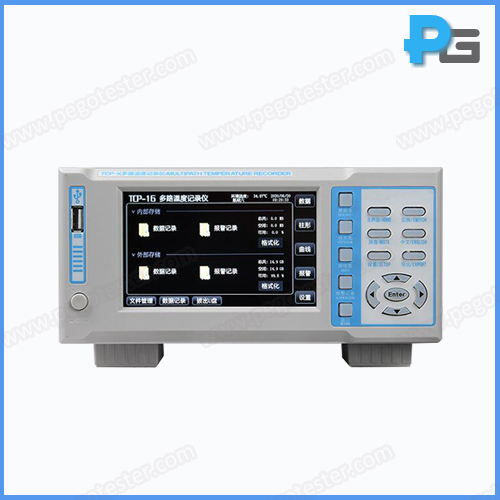

Multiplex Temperature Meter


Detail
Description Multiplex temperature meter, multiplex temperature meter Model TCP-X

Multiplex Temperature Tester

1. Introduction

Multiplex temperature tester is a equipment that can simultaneously monitor multiple channel temperatures. Equip with 5-inch LCD touch screen, the upper and lower limit can be preset for alarming, display and record the temperature of each channel at real time, the column graph and temperature change graph can visually show the temperature change of each channel.


2. Specification

Model

TCP-8X

TCP-16X

TCP-24X

TCP-32X

TCP-40X

TCP-48X

TXP-56X

TCP-64X

Test channel

8

16

24

32

40

48

56

64

Touch screen

5-inch, LCD

Display accuracy

0.2℃±2 digit

Temperature sensor

K type (3m length for each channel)

Temperature test range

-50℃~1300℃

Alarming function

Upper and lower limit can be preset for alarming, and support on real time record

Column graph

The real-time temperature is displayed in the form of a bar graph, and the temperature value of each channel can be compared more clearly and intuitively.

temperature change graph

The real-time temperature can be tracked as a changing graph, and support on settings for X and Y axis values automatically or manually

Temperature units

K, 0F,

Operation language

Chinese-English switchable

Performance

32-digit ARM micro-processor, response time less than 0.5s

Anti-interface

Each channel is isolated from each other, anti-high frequency interference, the peak value of isolation voltage can reach 2500V

Storage capacity

8G

Data protection

the data can be stored for 72 hours to 180 days, and will not lose when emergency shut down

U disk

Support U disk to export the storage data

Temperature compensation

each channel supports temperature compensation and provides multiple compensation modes

Mark function

Each channel can be named arbitrarily

Sampling interval

100ms (H), 500ms (Middle), 1s (Low)

Interface

USB 2.0

Working power

AC85V-265V, 50Hz/60Hz

Dimension

215mm*300mm*100mm (L*W*H)
