Non-Solid Pin Test Apparatus for Appliance Couplers
1. Introduction

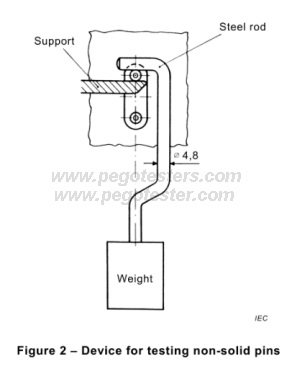

The non-solid pin test apparatus is designed according to IEC60320-1 figugre 2, for checking the mechanical strength of non-solid pins of appliance inlet / plug connector.
A force of 100N is exerted on the pin which is supported on the apparatus, for 1min in a direction perpendicular to the axis of the pin, by mean of a steel rod have a diameter of 4.8mm, the axis of which is also at right angles to the axis of the pin . After the test, there shall be no significant alteration in the shape of the pin.
2. Specification
Steel rod | Φ4.8mm |
Weights | 100N |

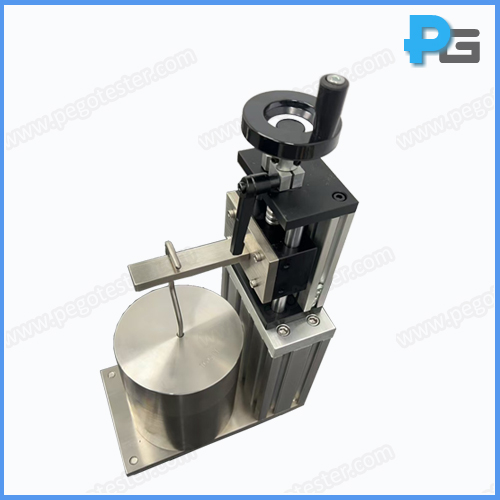

Usage | Manually rotate the hand wheel to make the pin bearing pressure, the test time is 1 min |
Reference standards | IEC60320-1 figure 2, IEC60884-1 figure 14 |
