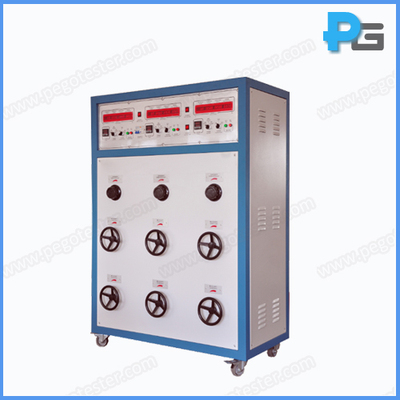

Power Load Cabinet
1. Introduction:
Power Load cabinet is a support equipment designed according to IEC60884-1 and UL1054, it is applied to simulate the electrical appliance in charged state, then to do the aging test and on- off ability test, the load current and surge current can be customized to the user's demands. This equipment adopts cabinet type, the shell is made by iron plates with coating, and 4 trundles to move, inductor resistor chip combination, strong wind cooling mechanism, voltage regulation system, high-power electricity reactor, various electrical control components, control circuit board and output terminal block and etc. are inside the cabinet.
2. Parameters
Load current | 0~30A (adjustable) |
Load voltage | 5~300V (adjustable) |
Power factor | 0.3~0.999 |
On-off loop counter | 1~999999 (pre-settable) |
Working station | 1, 2, 4 (optional) |
Working power | 220V/50Hz |
