Spring Hammer Calibration Device Calibrator
1. Introduction

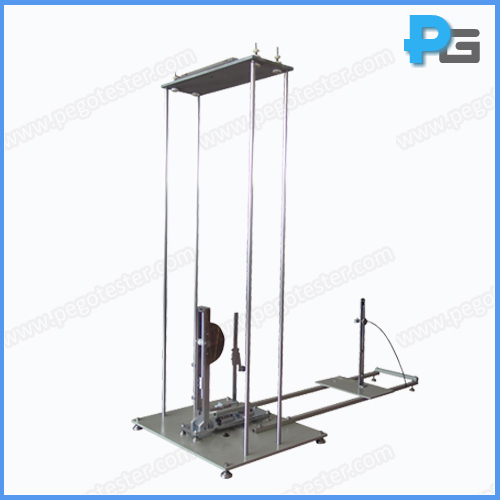

The spring hammer calibration device calibrator is designed according to IEC60068-2-75 Annex B.3 and figure B.5 for checking the impact energy accuracy of spring hammer calibration device. The calibation is made with an impact energy of 1J, which is achieved with a height of fall of 408±1mm, with a calibation striking element of 250g.
2. Parameter
Accuracy | 0.01J |
Repeated Accuracy | ±0.01J |
Max measuring range | 0-2J |
Calibration striking element | 250g |
Reference point | An impact energy of 1J is achieved with a height of 408±1mm |
Pendulum rope center distance | 2m |
