Steel Impact Ball
1. Introduction

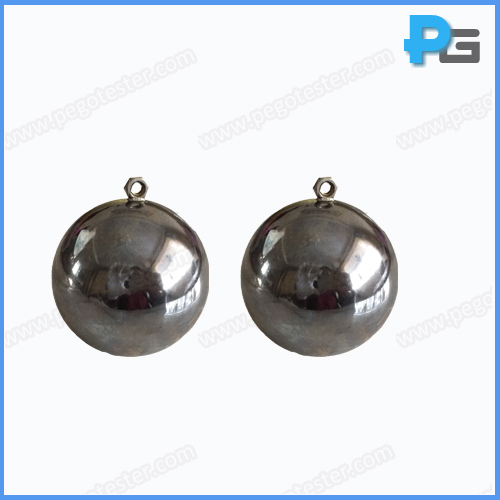

The steel impact ball is designed to meet the requirements of UL507 clause 61.3, IEC60598-1 and IEC60950-1 clause 4.2.5, the steel ball is with a ring for pendulum impact test and vertical impact test.
2. Parameter
Diameter of the ball | 50mm | 50.8mm |
Weight of the ball | 500±25g | 540g |
Material | steel | steel |
Standard | IEC60598-1, IEC60950-1 | UL507 |
