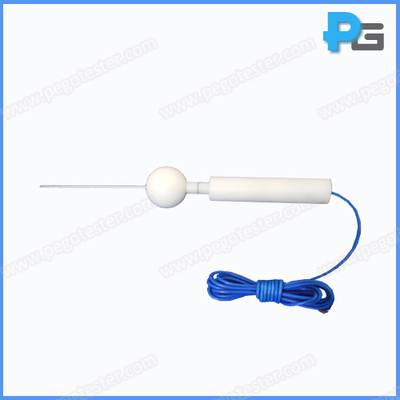

Test probe C for IP3X testing ( Test rod : Φ2.5 rod-length 100 )
1. Introduction:
Test probe C (test rod) Designed according to IEC61032 figure 3, meet the requirements of IEC60529-IP3, IEC60065，IEC60598 and etc.
Test probe C is for IP3X testing, it means for the protection against solid foreign objects of Φ2.5mm and greater
Test probe C with 3N force is for IP3X testing, it means for the protection of person’s tool from hazard parts.
2. Specification
Length of test rod: | 100mm | Diameter of test rod: | 2.5mm |
Diameter of stop sphere: | 35mm | Diameter of handle: | 10mm |
Length of handle: | 100mm | Thruster (optional): | 3N |
Material: Insulating material (handle, sphere), metal (test rod) |
3. IP code Test Probe Kits:
Test Probe A for IP10 Testing: Φ50 sphere with handle
Test Probe B for IP20 Testing: jointed test finger
Test probe C for IP30 Testing: Φ2.5 rod-length 100
Test Probe D for IP40 Testing: Φ1.0 wire-length 100
Test Probe 1 for IP10 Testing: 500g steel sphere
Test Probe 2 for IP20 Testing: 15g steel sphere
