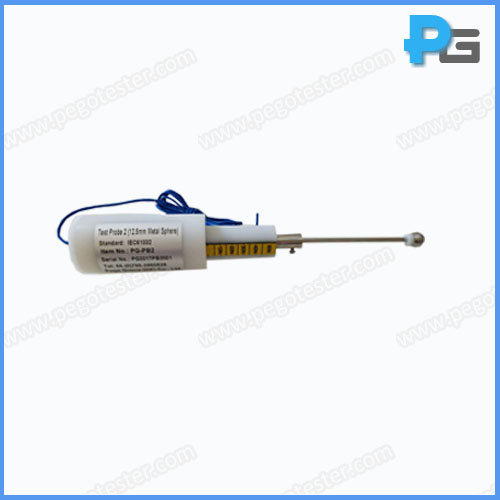

Test Probe 2 for IP2X Testing (12.5mm Test Sphere)
1. Introduction
Test probe 2 (15g test sphere) Designed according to IEC61032 figure 6, meet the requirement of IEC60529-IP2. The diameter of sphere is 12.5+0.2.
Test probe 2 is for IP2X testing, it means for the protection against solid foreign objects of Φ12.5mm or greater.
2. Parameter
● diameter of the sphere: 12.5mm (50.8mm, 63.5mm, 38.1mm choosable)
● weight of the sphere: 15g
● Material: steel sphere
● Handle for optional
3, IP code Test Probe Kits:
Test Probe A for IP10 Testing: Φ50 sphere with handle
Test Probe B for IP20 Testing: jointed test finger
Test probe C for IP30 Testing: Φ2.5 rod-length 100
Test Probe D for IP40 Testing: Φ1.0 wire-length 100
Test Probe 1 for IP10 Testing: 500g steel sphere
Test Probe 2 for IP20 Testing: 15g steel sphere
