The Crucial Role of Automatic Lightning Surge Generators

In modern electrical and electronic systems, the ability of equipment to withstand high - energy transient disturbances caused by natural lightning strikes or the switching of large inductive/capacitive loads is of utmost importance. The automatic surge generator, also known as a lightning surge generator, combination wave generator, current surge generator, or voltage surge generator, provides a standardized basis for evaluating the surge immunity of power lines and internal connection lines in various devices. Among them, the PEGO LSG-6K10 surge generator is a reliable testing tool that complies with standards such as IEC61000-4-5.

1. Overview of the PEGO LSG-6K10 Surge Generator

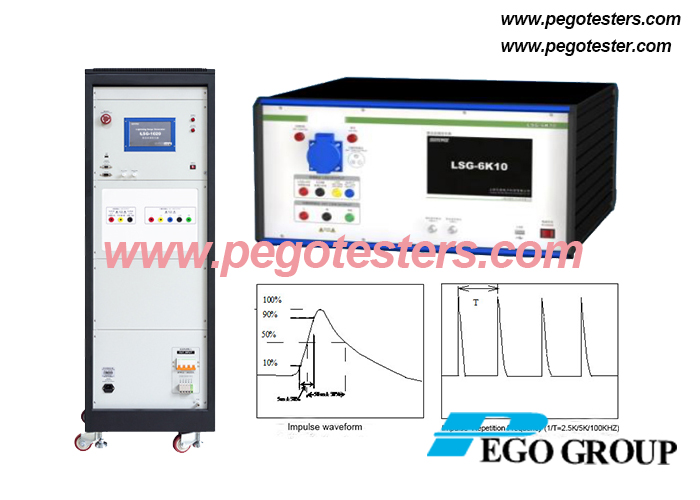

The LSG-6K10 is a state - of - the - art automatic surge generator, mainly used to simulate the transient overvoltages and overcurrents that occur during lightning strikes or load switching. This system can provide accurate and repeatable surge waveforms to assess the durability and performance of the device under test (DUT).

It has many remarkable features: it fully complies with the IEC 61000-4-5 standard, ensuring the standardization of testing; it is equipped with an intuitive touch - screen interface for quick setup and operation; it has strong versatility and can test single - phase and three - phase power supplies; it has a wide testing range, with a maximum peak surge voltage of up to 6kV and a maximum current of up to 3kA; it can accurately generate 1.2/50 μs voltage waveforms and 8/20 μs current waveforms.

2. Wide Range of Application Fields

2.1 Power Line Testing

It can effectively evaluate the resistance of power lines to surges and ensure the stability of power transmission. For example, in the power transmission network, it can detect the ability of transmission lines to withstand lightning surges and identify potential risks in advance.

2.2 Communication System Testing

It is used to test the resilience of communication lines under high - energy transient disturbances and avoid communication interruptions. Take the communication lines of 5G base stations as an example. Through testing, the reliability of communication during severe weather can be ensured.

2.3 Household Appliance Testing

It can ensure the reliability of consumer electronics under transient conditions and enhance the user experience. For instance, when testing smart TVs, it can guarantee that they can operate normally even during power surges, reducing the risk of damage to the internal circuit.

2.4 Industrial Equipment Testing

It validates the robustness of industrial systems exposed to lightning - induced surges. In industrial production environments, large - scale equipment is often vulnerable to lightning - related surges. Testing with the LSG-6K10 can help manufacturers improve the stability and safety of their products, ensuring continuous and efficient production.

3. Experimental Setup and Procedure

3.1 Equipment Configuration

The test setup mainly includes the PEGO LSG-6K10 surge generator as the core device for generating surges. The device under test (DUT) can be a variety of electrical products, such as appliances, industrial equipment, or power supplies. The coupling/decoupling network (CDN) is essential for ensuring the proper application of surge energy to the DUT. An oscilloscope is used to monitor the waveforms during the testing process, providing real - time data for analysis.

3.2 Testing Steps

First is the preparation stage, where the PEGO LSG-6K10 needs to be configured according to the desired voltage and current surge levels. Then, in the connection stage, the DUT is integrated into the testing setup through the appropriate CDN. Next, the surge waveform is applied to the DUT. During this process, data collection is carried out, recording the DUT's response, including any functional disruptions or damage. Finally, the analysis stage involves comparing the test results with the predefined acceptance criteria to determine whether the DUT passes the test.

4. Advantages of Automatic Surge Generators

Automatic surge generators, especially the LSG-6K10, offer several key advantages. They enable standardized testing, ensuring consistency and reliability across different testing environments. The automated procedures reduce the risk of operator error, enhancing safety during testing. They can comprehensively evaluate multiple parameters simultaneously, such as voltage, current, and energy. Moreover, they are useful for efficient troubleshooting, helping to identify weak points in electrical systems before product deployment, thus improving product quality and reliability.

Compliance with International Standards

The PEGO LSG-6K10 strictly adheres to the IEC 61000-4-5 standard. This compliance is crucial as it ensures compatibility with global testing requirements. For manufacturers looking to export their products to international markets, this compliance simplifies the certification process. Additionally, standards like EN61000-4-5 in Europe and GB/T 17626.5 in China are related to surge testing, and the LSG-6K10's compliance with IEC 61000 - 4 - 5 also provides a basis for meeting these regional standards.

In conclusion, the automatic surge generator, especially the PEGO LSG-6K10, is an indispensable tool for assessing the surge immunity of electrical and electronic systems. It helps manufacturers ensure that their products can withstand high - energy transients, which in turn enhances product reliability and customer satisfaction. By complying with international standards, it streamlines the certification process and promotes the development of high - quality, robust products.
