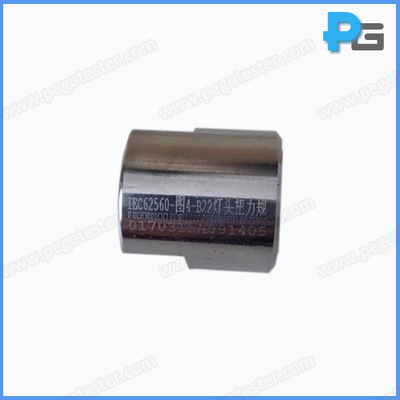

B15/B22 Holders Torque Gauges
Meet the requirements of IEC60432-1 figure C.1 and IEC60560-2 figure 4.

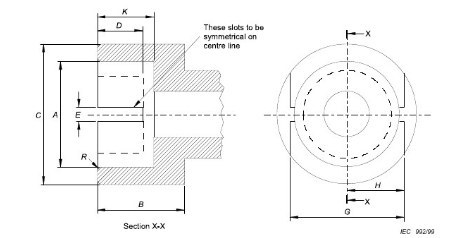

Dimension
| B15 (mm)
| B22 (mm)
| Tolerance (mm)
|
A
| 15.27
| 22.27
| +0.03
|
B
| 19.0
| 19.0
| Min.
|
C
| 21.0
| 28.0
| Min.
|
D
| 9.5
| 9.5
| Min.
|
E
| 3.0
| 3.0
| +0.17
|
G
| 18.3
| 24.6
| ±0.3
|
H
| 9.0
| 12.15
| Min.
|
K
| 12.7
| 12.7
| ±0.3
|
R
| 1.5
| 1.5
| Approximate
|
About the test gauges:
1. Lamp cap and Lampholder Gauges are designed according to IEC60061-3, it is also be called to go / no go gauge.
2. The structure and sharp (like thread waveform) of gauges for lamp cap and lampholder are calculated and optimized by computer, and then process by computer machine to reach high precision and nice-looking.
3. The lamp cap and lampholder gauges (go no go gauge) is made by high-hardness alloy, and handle with QPQ composite infiltration which greatly improved the abilities of rust prevention and wear resistance, the rockwell hardness can reach HR580 above, the service life is more than 3-5 times longer than ordinary gauges.
4. The Lamp cap and Lampholder gauges can pass the calibration of the third-party institute, and get the calibration certificate.
